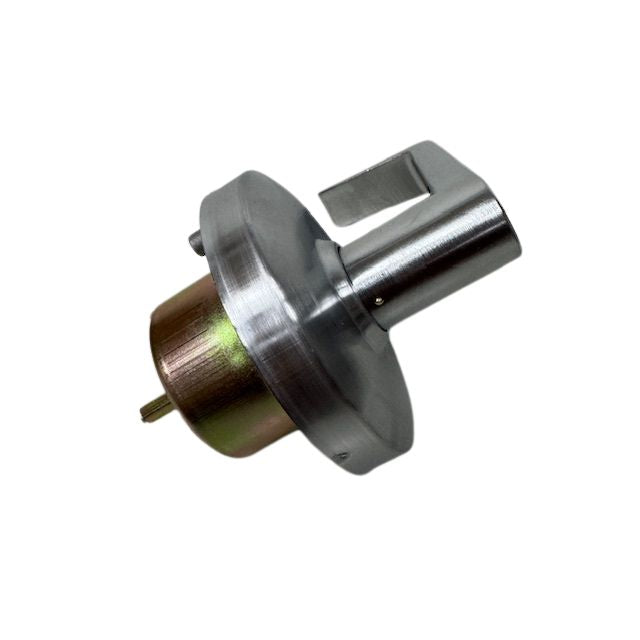

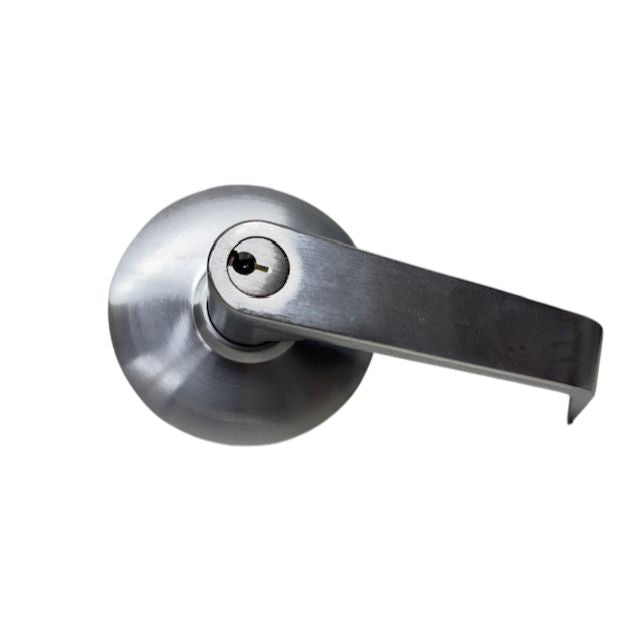

STR05L - Storeroom Lever Trim - GN Lever - Grade 1 - Satin Chrome

Product Description

The Cal Royal STR05L is a Grade 1 storeroom function lever trim, designed for use with Cal Royal A2200, 7700, and 9800 Series exit devices. Built for commercial-grade durability, it features a GN lever design with clutch mechanism and a satin chrome finish to match demanding security environments.

Specifications

• Function: Storeroom lever trim

• Compatibility: A2200 Series Rim, 7700 Series Rim, 9800 Series Rim, SVR, and 3-Point Exit Devices

• Handing: Non-handed

• Grade: ANSI/BHMA Grade 1 rated

• Lever Design: GN style with clutch mechanism

• Finish: US26D (Satin Chrome)

• Rose Diameter: 3-1/2″

• Lever Length: 4-3/4″

• Keyway: Schlage C keyway, 6-pin

• Includes: 2 keys

Features and Benefits

• Designed for storeroom function to maintain secure locking at all times

• Compatible with multiple Cal Royal exit devices for flexible integration

• Non-handed design for simplified installation in any orientation

• GN lever design with clutch mechanism enhances operational durability

• Grade 1 rated for high-traffic commercial use

• Satin chrome finish offers a clean, corrosion-resistant surface

• Includes Schlage C 6-pin cylinder and two keys for turnkey installation

Additional Information

Ideal for retrofit or new construction applications, the Cal Royal STR05L provides reliable, high-grade security performance in commercial facilities. It fits standard door preparations and is designed for straightforward installation.
