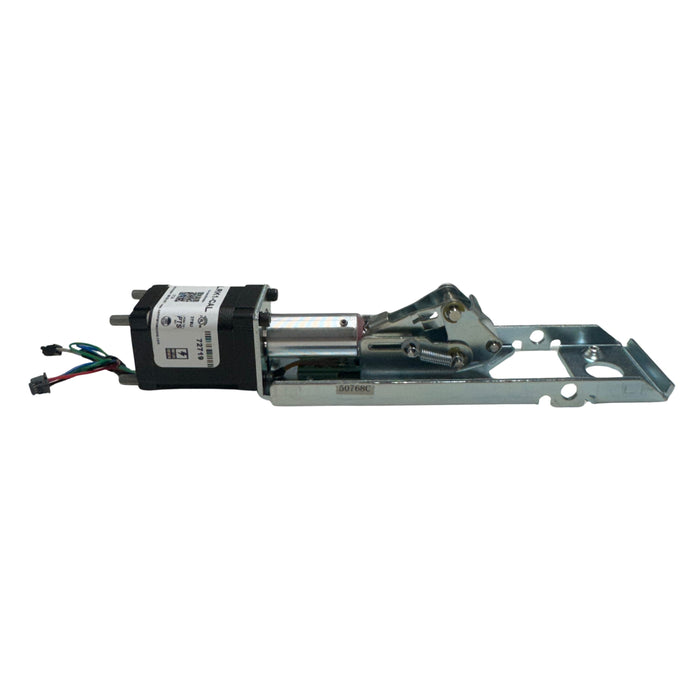

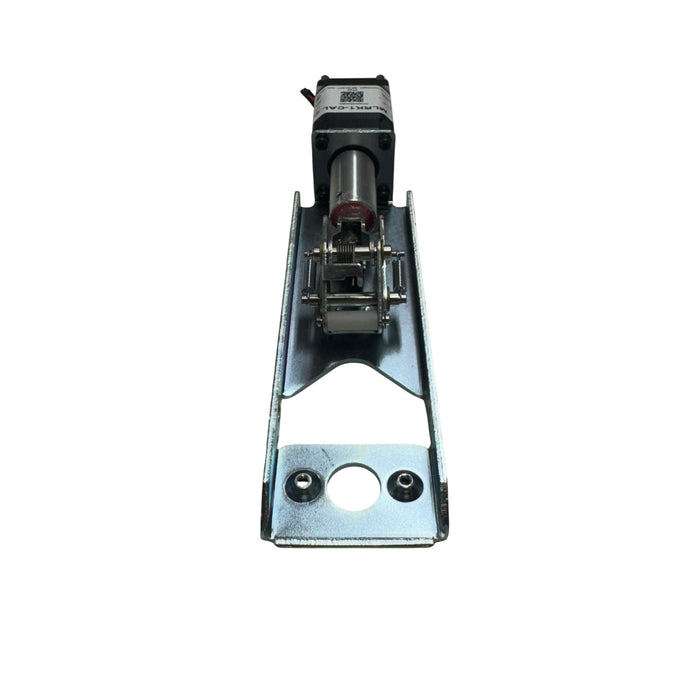

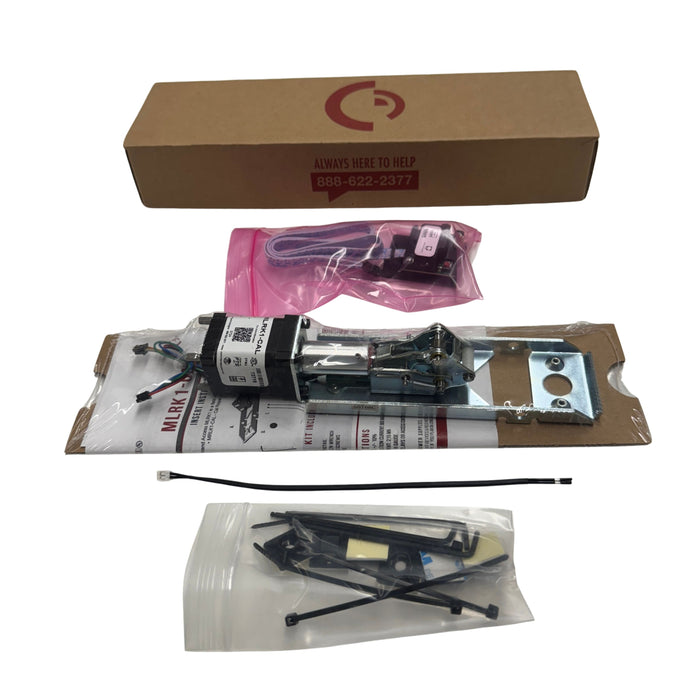

Command Access Technologies MLRK1‑CAL – Electrified Latch Retraction Kit (Cal‑Royal 2200 & 9800 Series, MM4S Module, 24‑28 VDC)
Product Description
Overview:
A cost-effective, motorized retrofit kit that converts Cal‑Royal 2200 and 9800 Series exit devices into electrified latch retraction systems. Designed for quick installation and long-term reliability, the MLRK1‑CAL retains UL certification and features Push‑to‑Set (PTS) technology for smooth post-install adjustment.
Specifications:
-
Compatibility: Cal‑Royal 2200 & 9800 Series
-
Voltage Range: 24–28 VDC
-
System Protection: Automatic shutdown when voltage exceeds 28 VDC
-
Current Draw:
-
Standard Torque: Peak 900 mA, Hold 215 mA
-
High Torque: Peak 2 A, Hold 250 mA
-
-
Push‑to‑Set (PTS) Adjustment: Approx. ¼″ post-installation
-
Wire Run Capability: Up to 300′ with 18 ga wire
-
Module: MM4S smart module with dual torque operation and onboard diagnostics
Product Details:
-
Weight: 2 lb
Features & Benefits:
-
Quick and simple installation for fast retrofits
-
PTS feature enables easy, tool-free adjustment after installation
-
Field-switchable torque settings handle varied door conditions
-
Preserves UL listing of the base exit device
-
Includes a 3‑year no-hassle manufacturer warranty
