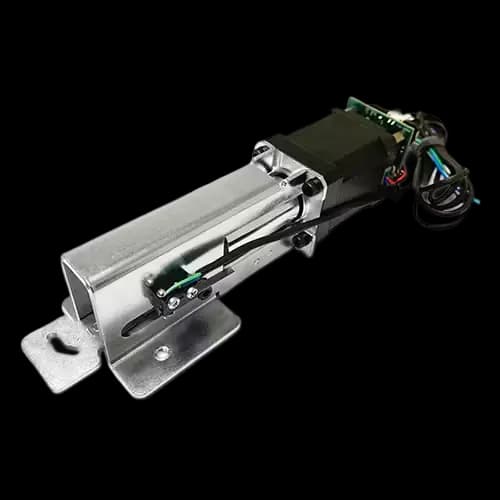

MLRK1-CAL - Motorized Latch Retraction Kit - Cal-Royal 2200 & 9800 Series Compatible - Request to Exit

Product Description

Overview:
A cost-effective, motorized retrofit kit that converts Cal‑Royal 2200 and 9800 Series exit devices into electrified latch retraction systems. Designed for quick installation and long-term reliability, the MLRK1‑CAL retains UL certification and features Push‑to‑Set (PTS) technology for smooth post-install adjustment.

Specifications:

• Compatibility: Cal‑Royal 2200 & 9800 Series

• Voltage Range: 24–28 VDC

• System Protection: Automatic shutdown when voltage exceeds 28 VDC

• Current Draw:

  • Standard Torque: Peak 900 mA, Hold 215 mA

  • High Torque: Peak 2 A, Hold 250 mA

• Push‑to‑Set (PTS) Adjustment: Approx. ¼″ post-installation

• Wire Run Capability: Up to 300′ with 18 ga wire

• Module: MM4S smart module with dual torque operation and onboard diagnostics

Product Details:

• Weight: 2 lb

Features & Benefits:

• Quick and simple installation for fast retrofits

• PTS feature enables easy, tool-free adjustment after installation

• Field-switchable torque settings handle varied door conditions

• Preserves UL listing of the base exit device

• Includes a 3‑year no-hassle manufacturer warranty
