ML80-EU-CH-12V-REX - Electrified Mortise Lock - Schlage L9000 - 12V Fail Secure Storeroom Function - Request to Exit

Product Description

Overview

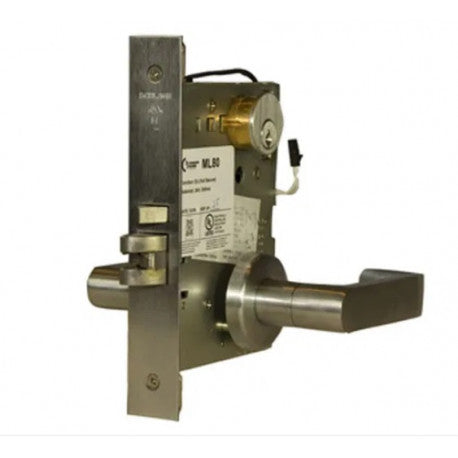

The Command Access ML80‑EU‑CH‑12V‑REX is a 12V electrified Schlage L9000 series mortise lock chassis modified by Command Access Technologies. Engineered for fail secure operation and equipped with Request to Exit (REX), this storeroom function lock provides reliable remote access and egress control in high-security, high-traffic environments.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Base Lock Series: Schlage L9000

• Electrified By: Command Access Technologies

• Model: ML80‑EU‑CH

• Voltage: 12 VDC

• Function: Storeroom (EU – electronically unlocked)

• Operation: Fail Secure – outside lever is locked when unpowered

• REX Function: Built-in Request to Exit (REX) capability

• Solenoid: Continuous duty rated

• Power Requirements:

  • 12V = 700 mA

  • Solenoid resistance: 18 Ω

  • Power consumption: 8 watts

• Compatibility: Accepts AC or DC via plug-in bridge rectifier

• Warranty: Covered by Command Access 3-year no-hassle warranty

Features & Benefits

• Command Access Electrification: Modified from Schlage L9000 for access control applications

• Storeroom Function:

  • Outside lever electronically unlocked (EU)

  • Latchbolt retracted via key (outside) or lever (inside)

  • Inside lever always allows free egress

• Fail Secure: Maintains locked status when power is removed

• Request to Exit (REX): Integrated for added security monitoring

• Continuous Duty Solenoid: Ideal for “always on” scenarios

• Low Current Draw: Efficient operation minimizes power consumption

• Flexible Power: Operates on either 12V AC or DC via bridge rectifier

• Durable Construction: Built for heavy-duty commercial use

Common Applications

• Stairwell doors

• Computer rooms

• Lobby entrances

• Classrooms

• Interior/exterior high-traffic doors
