ML80-EU-CH-24V-REX - Electrified Mortise Lock - Schlage L9000 - 24V Fail Secure Storeroom Function - Request to Exit

Product Description

Overview

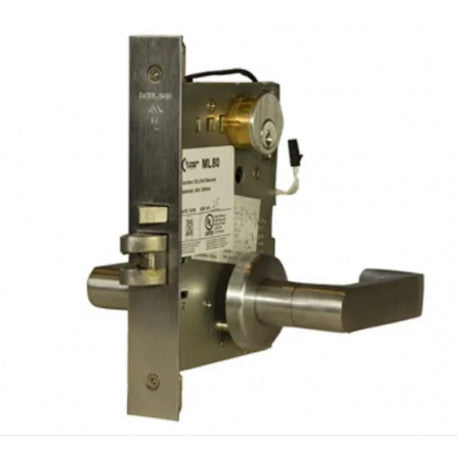

The Command Access ML80‑EU‑CH‑24V‑REX is a 24V electrified mortise lock chassis built on the Schlage L9000 platform and modified by Command Access Technologies. This fail secure model with Request to Exit (REX) capability is designed for secure access control applications, combining durability with precise latch retraction control for commercial environments.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Base Lock Series: Schlage L9000

• Electrified By: Command Access Technologies

• Model: ML80‑EU‑CH

• Voltage: 24 VDC

• Function: Storeroom (EU – electronically unlocked)

• Operation: Fail Secure – remains locked when unpowered

• REX Function: Integrated Request to Exit

• Solenoid: Continuous duty rated

• Power Requirements:

  • 24V = 350 mA

  • Solenoid resistance: 69 Ω

  • Power consumption: 8 watts

• Power Compatibility: AC or DC via included bridge rectifier

• Warranty: 3-year no-hassle warranty from Command Access

Features & Benefits

• Command Access Electrification: Modified Schlage L9000 chassis for advanced access control integration

• Storeroom Function Details:

  • Outside lever electronically unlocked (EU)

  • Latchbolt retracts via key from outside or lever inside

  • Inside lever always allows free egress

• Fail Secure Design: Locks when power is off—ensures security during outages

• REX Capability: Enables egress monitoring or alarm trigger on exit

• Efficient Power Use: Low current draw allows centralized control

• Flexible Voltage Input: Supports AC or DC wiring through plug-in rectifier

• Ideal for Continuous Use: Continuous duty solenoid supports high-cycle environments

Common Applications

• Lobby and stairwell doors

• Data centers and IT rooms

• Interior and exterior commercial access points

• Classrooms and administrative buildings
