ML371-EU-CH-24V - Electrified Mortise Lock - Sargent 8200 - 24V Fail Secure Storeroom Function

Product Description

Overview

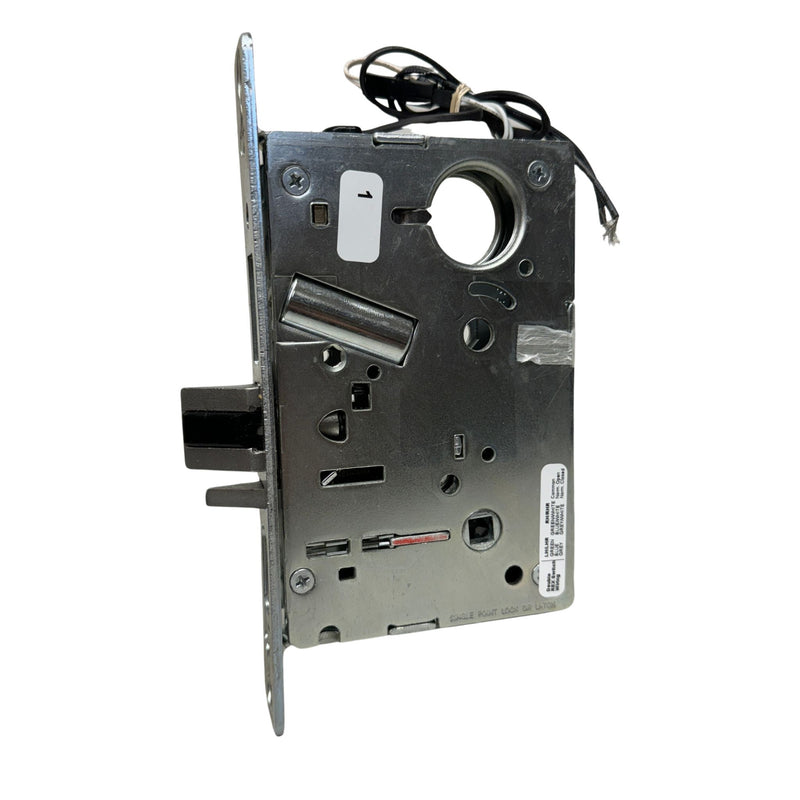

The Command Access ML371‑EU‑CH‑24V is a 24V electrified mortise lock chassis based on the Sargent 8200 series and professionally modified by Command Access Technologies. Designed for storeroom applications, this fail secure lock provides dependable electric latch retraction for commercial access control systems.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Base Lock Series: Sargent 8200 Series

• Electrified By: Command Access Technologies

• Model: ML371‑EU‑CH

• Voltage: 24 VDC

• Function: Storeroom (EU – electronically unlocked)

• Operation: Fail Secure – outside lever remains locked without power

• Power Requirements:

  • Amperage: 350 mA

  • Solenoid resistance: 69 Ω

  • Power consumption: 8 watts

• Power Compatibility: Accepts 24VAC/DC (±10%) via plug-in bridge rectifier

• Solenoid: Continuous duty rated

• Warranty: Covered by Command Access 3-year no-hassle warranty

Features & Benefits

• Command Access Modified: Electrified from Sargent 8200 lock for remote access control

• Storeroom Function Details:

  • Outside lever unlocked when powered

  • Latchbolt retracts with key from outside or lever from inside

  • Inside lever always free for egress

• Fail Secure Configuration: Maintains locked condition during power loss

• Durable & Efficient: Continuous-duty solenoid and low power draw support high-traffic applications

• Power Flexibility: Compatible with AC or DC input

• Chassis Only: Ideal for integration with existing levers and trims

Common Applications

• Server rooms

• Commercial lobbies

• Stairwell doors

• Classrooms and administrative spaces

• Interior and exterior access-controlled doors
