ML371-EU-CH-12V - Electrified Mortise Lock - Sargent 8200 - 12V Fail Secure Storeroom Function

Product Description

Overview

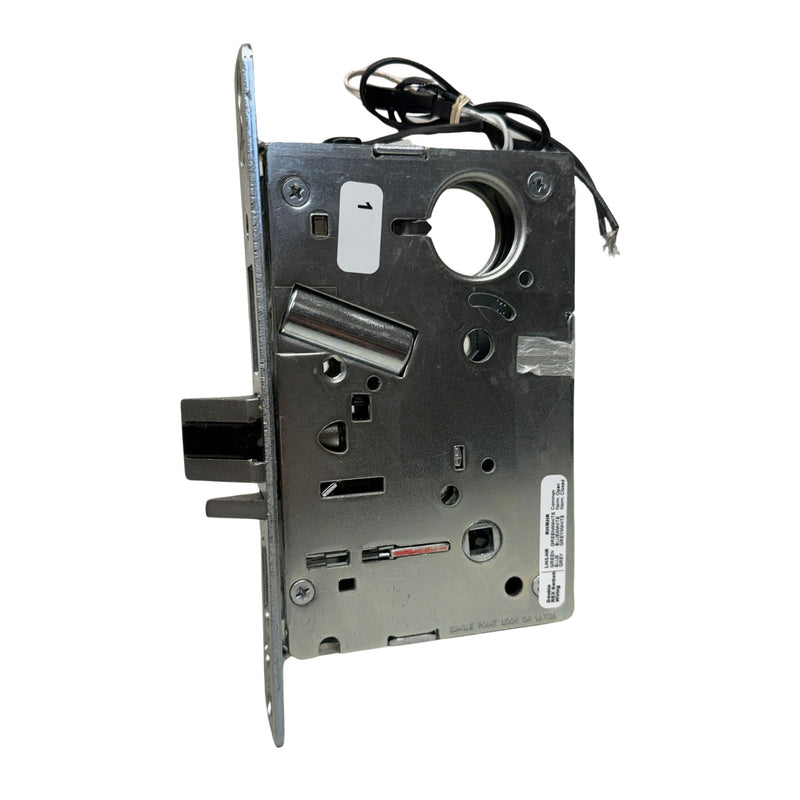

The Command Access ML371‑EU‑CH‑12V is a 12V electrified mortise lock chassis based on the Sargent 8200 series and enhanced by Command Access Technologies. Designed for fail secure operation, this storeroom function chassis supports secure, access-controlled entry in commercial buildings and high-traffic environments.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Base Lock Series: Sargent 8200 Series

• Electrified By: Command Access Technologies

• Model: ML371‑EU‑CH

• Voltage: 12 VDC

• Function: Storeroom (EU – electronically unlocked)

• Operation: Fail Secure – outside lever locked when unpowered

• Power Requirements:

  • Amperage: 700 mA

  • Solenoid resistance: 18 Ω

  • Power consumption: 8 watts

• Power Compatibility: Accepts 12VAC/DC (±10%) via included bridge rectifier

• Solenoid: Rated for continuous duty

• Warranty: Includes Command Access 3-year no-hassle warranty

Features & Benefits

• Command Access Enhanced: Electrified conversion of the Sargent 8200 mortise lock chassis

• Storeroom Functionality:

  • Outside lever unlocked electronically (EU)

  • Key retracts latchbolt from outside; inside lever always free

• Fail Secure Security: Lock remains engaged when power is interrupted

• Low Voltage Efficiency: Low current draw, 12V system compatible

• Durable for High-Use: Continuous-duty solenoid supports heavy traffic areas

• Flexible Power Input: Operates with AC or DC setups

• Chassis-Only Model: Integrates with existing levers and trims for seamless upgrades

Common Applications

• Classrooms and lecture halls

• Lobbies and stairwells

• Computer rooms

• Office interiors and exteriors

• High-security commercial entryways
