Command Access ML180‑EU‑CH‑12V‑REX – Electrified Mortise Lock Chassis, Schlage Retrofit, Storeroom, Fail Secure, 12V with REX

Product Description

Overview

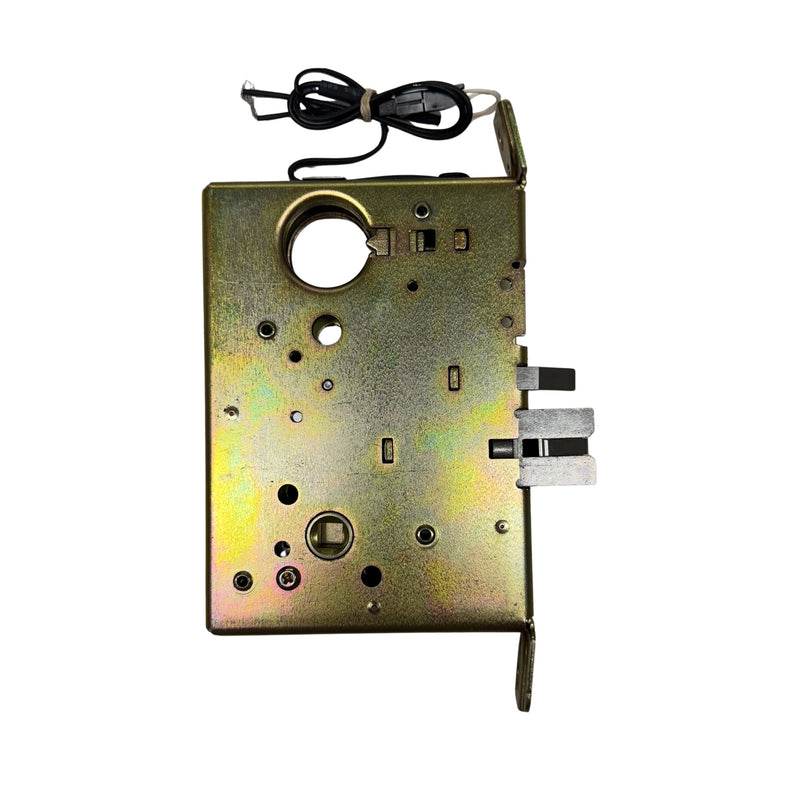

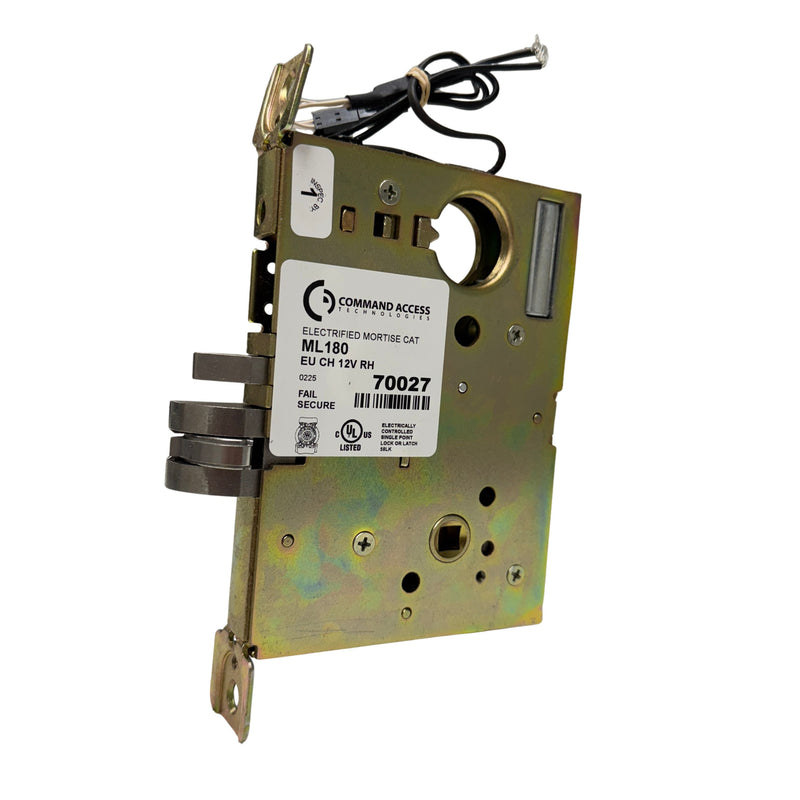

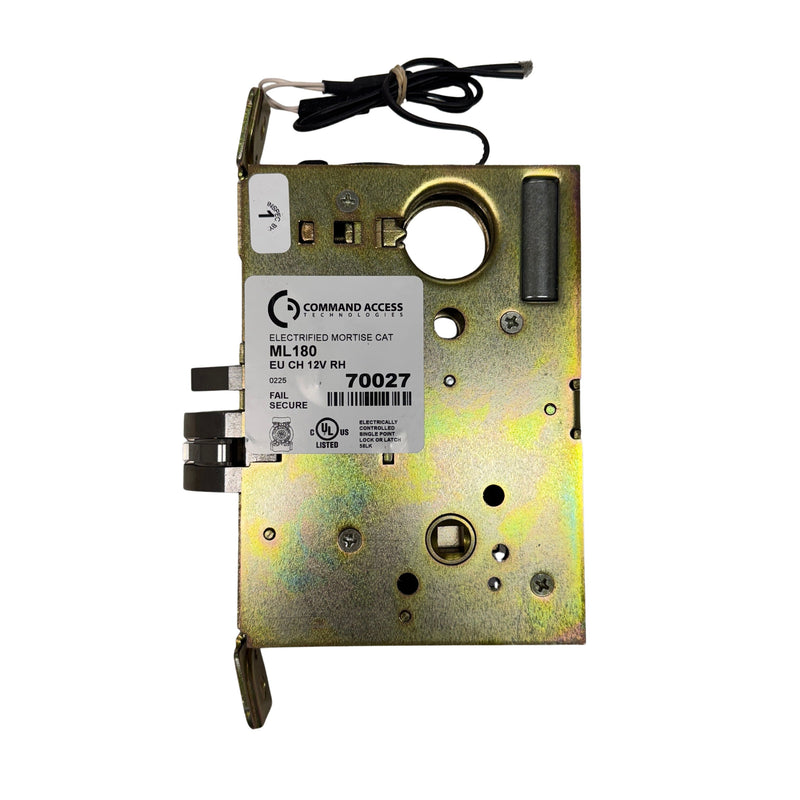

The Command Access ML180‑EU‑CH‑12V‑REX is a 12V electrified mortise lock chassis from the ML1 series, designed to retrofit Schlage L-Series locks. Featuring a storeroom function, fail secure operation, and built-in Request to Exit (REX), this lock provides a high-performance access control solution for secure commercial environments.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Series: ML1 – Schlage L-Series Retrofit

• Electrified By: Command Access Technologies

• Model: ML180‑EU‑CH

• Voltage: 12 VDC

• Function: Storeroom (EU – electronically unlocked)

• Operation: Fail Secure – outside lever remains locked without power

• REX Function: Integrated Request to Exit

• Power Requirements:

  • Amperage: 700 mA

  • Solenoid resistance: 18 Ω

  • Power consumption: 8 watts

• Power Compatibility: Operates on 12VAC/DC (±10%) via bridge rectifier

• Handing: Field reversible (EL/EU configurable)

• Solenoid: Continuous duty rated

• Warranty: Command Access 3-year no-hassle warranty

Features & Benefits

• Command Access Modified: Electrified from a Schlage-compatible chassis for easy retrofit and integration

• Storeroom Functionality:

  • Outside lever electronically unlocked

  • Key retracts latchbolt from outside; inside lever always active

• Fail Secure for Security: Door remains secure during power loss

• Integrated REX: Supports request to exit signaling for monitoring or alarms

• Grade 1 Build: Engineered for demanding commercial use

• Low Voltage Compatibility: Ideal for 12VDC access control systems

• Flexible Configuration: Field-reversible handing and EL/EU options

• Retrofit Simplicity: Compatible with existing Schlage L-Series trim sets

Common Applications

• Office buildings

• Classrooms and labs

• IT server rooms

• Lobby entry points

• Controlled interior and exterior doors
