ML1080
Command Access Technologies
$130.00
List: $215.00
10 in stock

Your Price:
$300.00USD
List Price: $430.00USD
SKU#: ML180-EU-24V-REX
Availability: 9 in stock
Ships from: Orange, CA

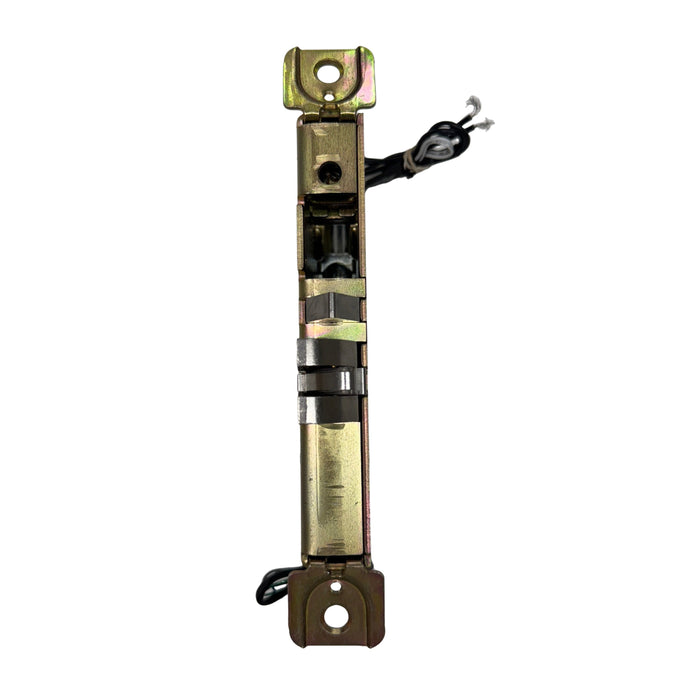

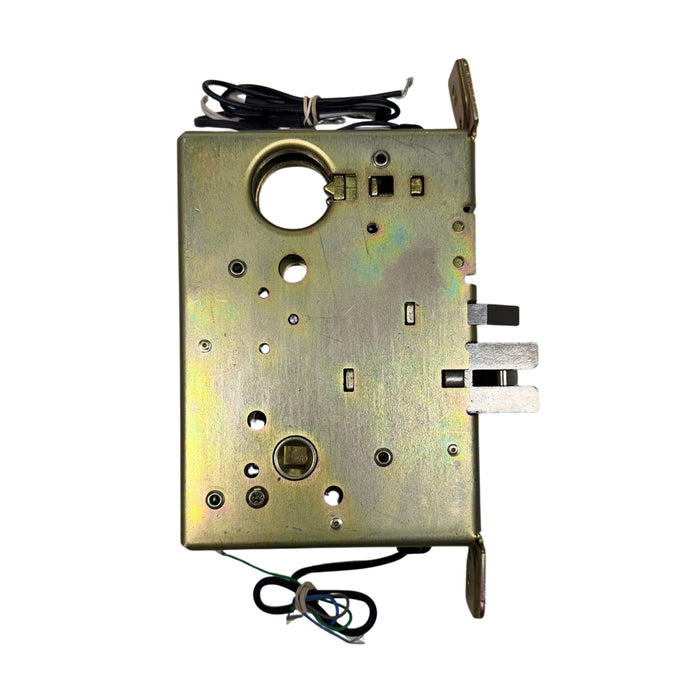

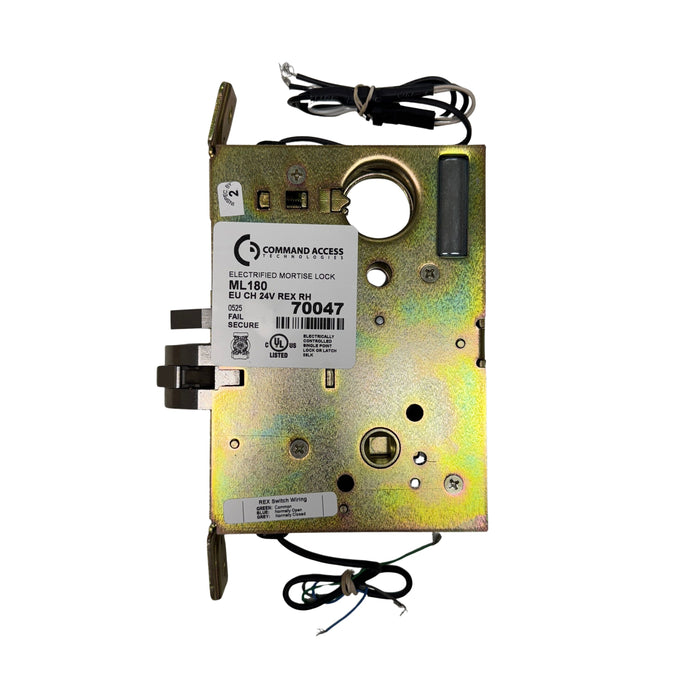

The Command Access ML180‑EU‑24V‑REX is a 24V electrified mortise lock from the ML1 series, designed as a retrofit for Schlage L-Series hardware. Featuring storeroom function, fail secure operation, and integrated Request to Exit (REX), this lock delivers Grade 1 security and access control performance in high-use commercial environments.
Product Type: Electrified Mortise Lock (Complete or Chassis Only)
Series: ML1 – Schlage L-Series Retrofit
Electrified By: Command Access Technologies
Model: ML180‑EU
Voltage: 24 VDC
Function: Storeroom (EU – electronically unlocked)
Operation: Fail Secure – outside lever remains locked when power is off
REX Function: Integrated Request to Exit
Power Requirements:
Amperage: 350 mA
Solenoid resistance: 69 Ω
Power consumption: 8 watts
Power Compatibility: Operates on 24VAC/DC (±10%) via bridge rectifier
Handing: Field reversible (EL/EU configurable)
Solenoid: Continuous duty rated
Warranty: Command Access 3-year no-hassle warranty
Schlage Retrofit: Designed to replace Schlage L-Series lock bodies
Fail Secure Configuration: Ensures door remains secure during power loss
Storeroom Functionality:
Outside lever electronically unlocked
Latchbolt retracts via key from outside or by lever from inside
Inside lever always allows free egress
Integrated REX: Supports door monitoring and egress signaling
Durable and Efficient: Grade 1 construction and low power draw
Flexible Installation: Field reversible handing and function (EL/EU)
Office and classroom doors
Building entrances and corridors
Server rooms and secure areas
Access control retrofits using Schlage hardware

Electrified Mortise Lock
