ML1485‑EU‑CH‑12V‑REX
Command Access Technologies
$320.00
List: $525.00
only 3 left
Related Products
Shop Popular Categories
Your Price:
$320.00USD
List Price: $525.00USD
SKU#: ML1485-EU-CH 24V REX
Availability: 3 in stock
Ships from: Orange, CA

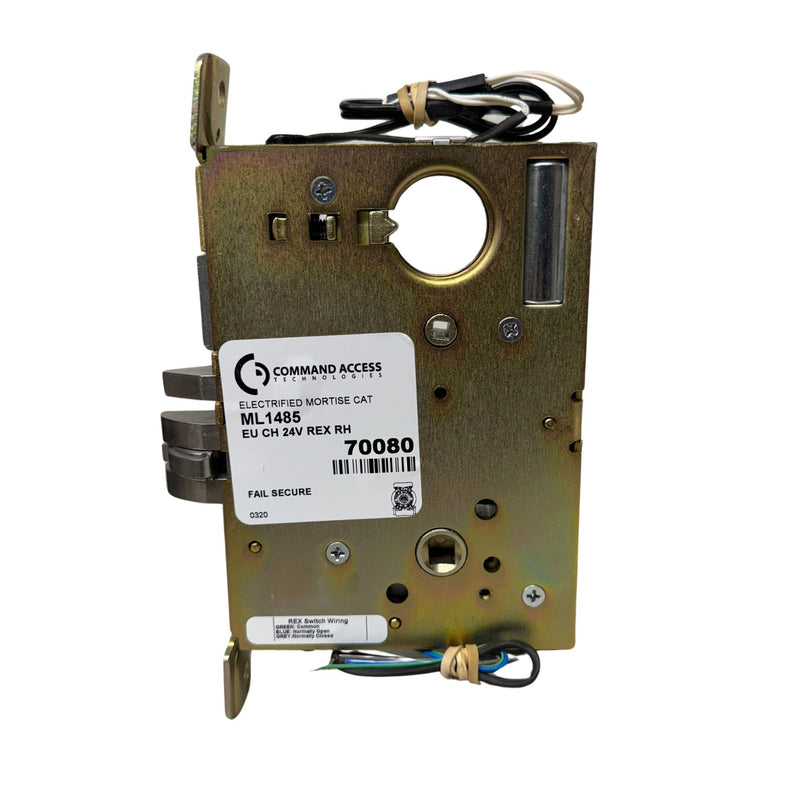

The Command Access ML1485‑EU‑CH‑24V‑REX is a 24V electrified mortise lock from the ML1 series, purpose-built to retrofit Schlage L-Series hardware. Featuring a privacy function with deadbolt, fail secure operation, and integrated Request to Exit (REX), this Grade 1 lock chassis offers advanced security for applications requiring both latch and deadbolt retraction with power control.
Product Type: Electrified Mortise Lock Chassis
Series: ML1 – Schlage L-Series Retrofit
Electrified By: Command Access Technologies
Model: ML1485‑EU‑CH
Voltage: 24 VDC
Function: Privacy with Deadbolt (EU – electronically unlocked)
Operation: Fail Secure – outside lever locked when power is lost
Deadbolt: Power unlock disabled when deadbolt is thrown
REX Function: Integrated Request to Exit
Power Requirements:
Amperage: 350 mA
Solenoid resistance: 69 Ω
Power consumption: 8 watts
Power Compatibility: Accepts 24VAC/DC (±10%)
Handing: Field reversible (EL/EU configurable)
Solenoid: Continuous duty rated
Warranty: Covered by Command Access 3-year no-hassle warranty
Command Access ML1 Series: Retrofit-ready for Schlage L-Series hardware
Privacy with Deadbolt Functionality:
Outside lever electronically unlocked
Latchbolt and deadbolt retract via key (outside) or lever (inside)
Power unlock disabled when deadbolt is thrown
Inside lever always allows free egress
Fail Secure: Maintains locked status when unpowered
Built-In REX: Enables door status monitoring and exit signaling
Grade 1 Quality: Heavy-duty build for long-lasting commercial use
Energy Efficient: Low amperage draw and AC/DC compatibility
Field Configurable: Easily reversible handing and function in the field
Executive offices
Private meeting rooms
Secure patient or privacy areas
Retrofits for Schlage L-Series installations requiring deadbolt integration
