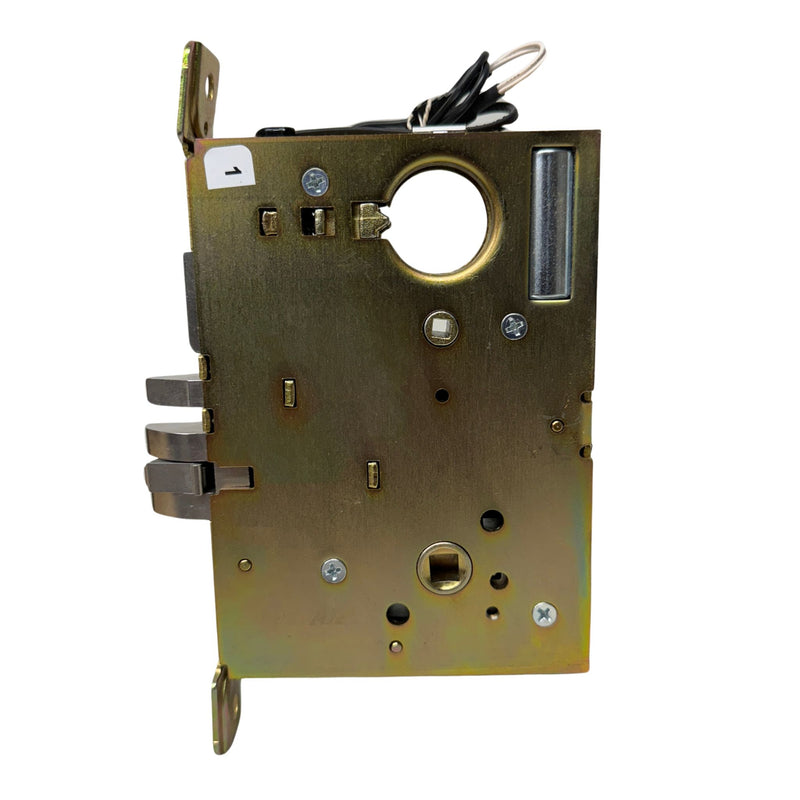

Command Access ML1485 Electrified Mortise Lock - Schlage L-Series - 12V Fail Secure - Deadbolt/REX

Product Description

Overview

The Command Access ML1485‑EU‑CH‑12V‑REX is a 12V electrified mortise lock from the ML1 series, designed for Schlage L-Series retrofit applications. This privacy function model includes a mechanical deadbolt, fail secure operation, and integrated Request to Exit (REX) capability—making it ideal for privacy-sensitive access-controlled areas.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Series: ML1 – Schlage L-Series Retrofit

• Electrified By: Command Access Technologies

• Model: ML1485‑EU‑CH

• Voltage: 12 VDC

• Function: Privacy with Deadbolt (EU – electronically unlocked)

• Operation: Fail Secure – outside lever remains locked when power is off

• REX Function: Built-in Request to Exit

• Deadbolt: Disables electric unlock when thrown

• Power Requirements:

  • Amperage: 700 mA

  • Solenoid resistance: 18 Ω

  • Power consumption: 8 watts

• Power Compatibility: Operates on 12VAC/DC (±10%)

• Handing: Field reversible (EL/EU configurable)

• Solenoid: Continuous duty rated

• Warranty: 3-year no-hassle warranty from Command Access

Features & Benefits

• Electrified by Command Access: ML1 chassis specifically designed to retrofit Schlage L-Series trim

• Privacy Function with Deadbolt:

  • Outside lever electronically unlocked unless deadbolt is engaged

  • Key retracts both latch and deadbolt from outside

  • Inside lever always active for egress

• Fail Secure Security: Prevents outside access during power loss

• REX Integration: Enables egress signal monitoring

• High-Grade Durability: Built to Grade 1 standards for longevity

• Field-Ready: EL/EU functionality and handing adjustable on site

• Power Efficient: Designed for continuous duty with low current draw

Common Applications

• Healthcare and counseling offices

• Private restrooms with electric control

• Executive suites

• Secure, private meeting rooms

• Retrofit installations requiring privacy and deadbolt integration
