ML1485‑EU‑CH‑12V‑REX
Command Access Technologies
$320.00
List: $525.00
only 3 left
Related Products
Shop Popular Categories
Your Price:
$300.00USD
List Price: $445.00USD
SKU#: ML1485‑EU‑CH‑12V
Availability: 4 in stock
Ships from: Orange, CA

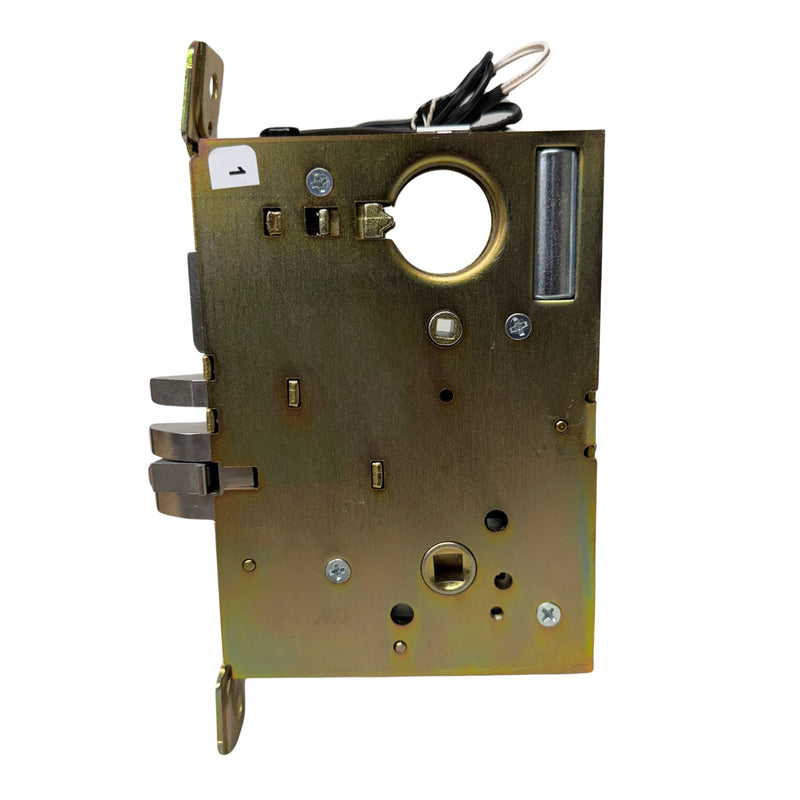

The Command Access ML1485‑EU‑CH‑12V is a 12V electrified mortise lock from the ML1 series, engineered to retrofit Schlage L-Series lock trim. It features a privacy function with mechanical deadbolt, fail secure operation, and Grade 1 performance—delivering reliable security and access control where privacy and durability are key.
Product Type: Electrified Mortise Lock Chassis
Series: ML1 – Schlage L-Series Retrofit
Electrified By: Command Access Technologies
Model: ML1485‑EU‑CH
Voltage: 12 VDC
Function: Privacy with Deadbolt (EU – electronically unlocked)
Operation: Fail Secure – outside lever remains locked when unpowered
Deadbolt: Disables electric unlock when thrown
Power Requirements:
Amperage: 700 mA
Solenoid resistance: 18 Ω
Power consumption: 8 watts
Power Compatibility: Operates on 12VAC/DC (±10%)
Handing: Field reversible (EL/EU configurable)
Solenoid: Continuous duty rated
Warranty: Backed by a Command Access 3-year no-hassle warranty
Command Access ML1 Series: Electrified retrofit for Schlage L-Series trim
Privacy with Deadbolt Function:
Outside lever electronically unlocked unless deadbolt is thrown
Latchbolt and deadbolt retract via key (outside) or lever (inside)
Inside lever always allows immediate egress
Fail Secure Configuration: Maintains locked status during power outages
Grade 1 Durability: Built for high-traffic, secure commercial applications
Power Efficient: Low amperage draw and AC/DC compatible
Field Configurable: EL/EU function and handing adjustable during installation
Executive restrooms
Patient care rooms
Counseling and consultation offices
Retrofit locations needing privacy and deadbolt functionality
Secure private commercial spaces
