Command Access ML1480 Electrified Mortise Lock - Schlage L-Series Retrofit - 24V Fail Secure - Deadbolt

Product Description

Overview

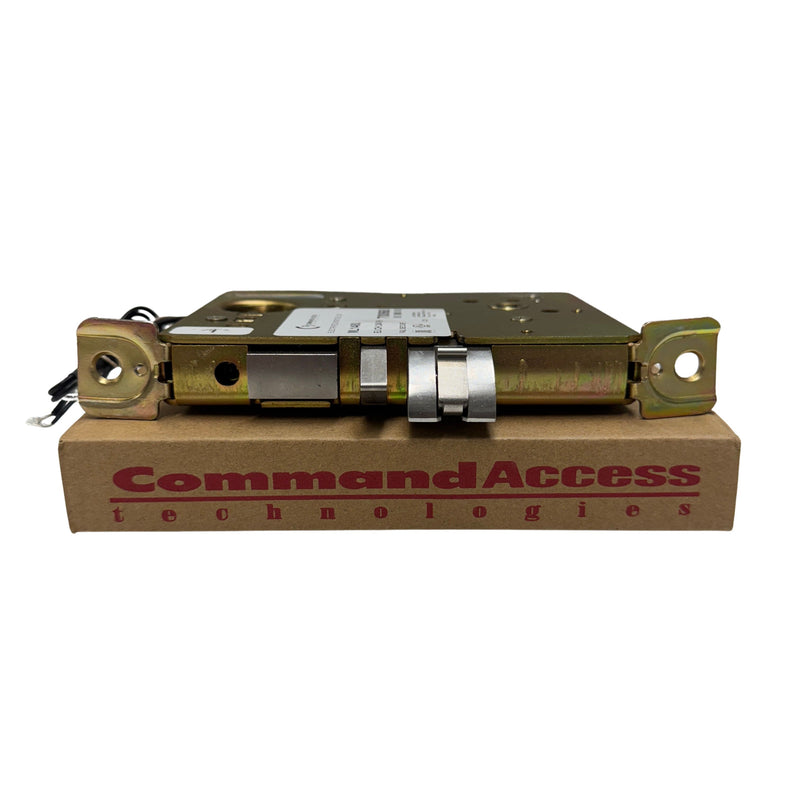

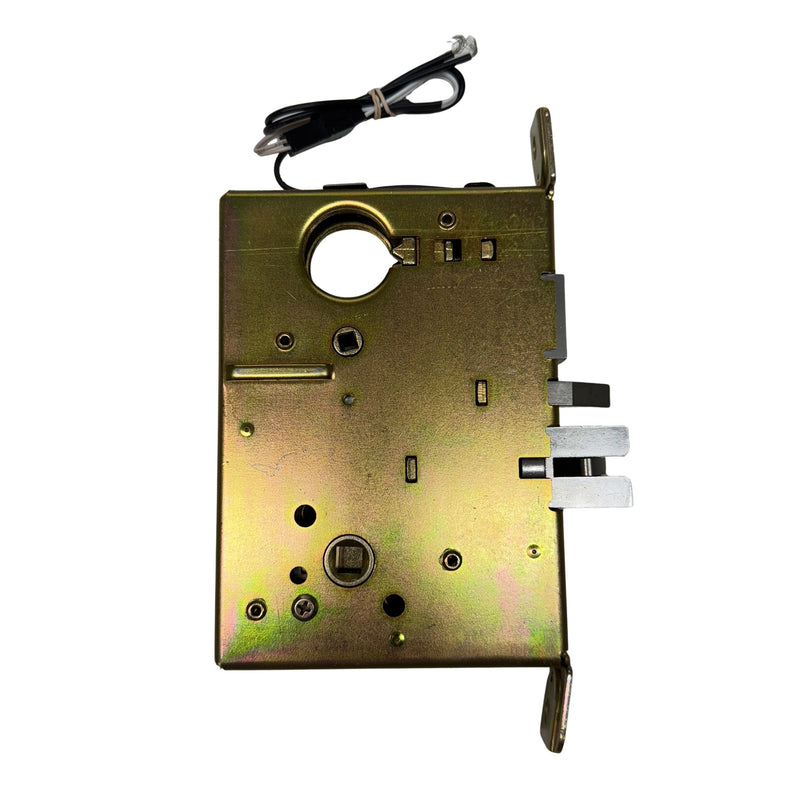

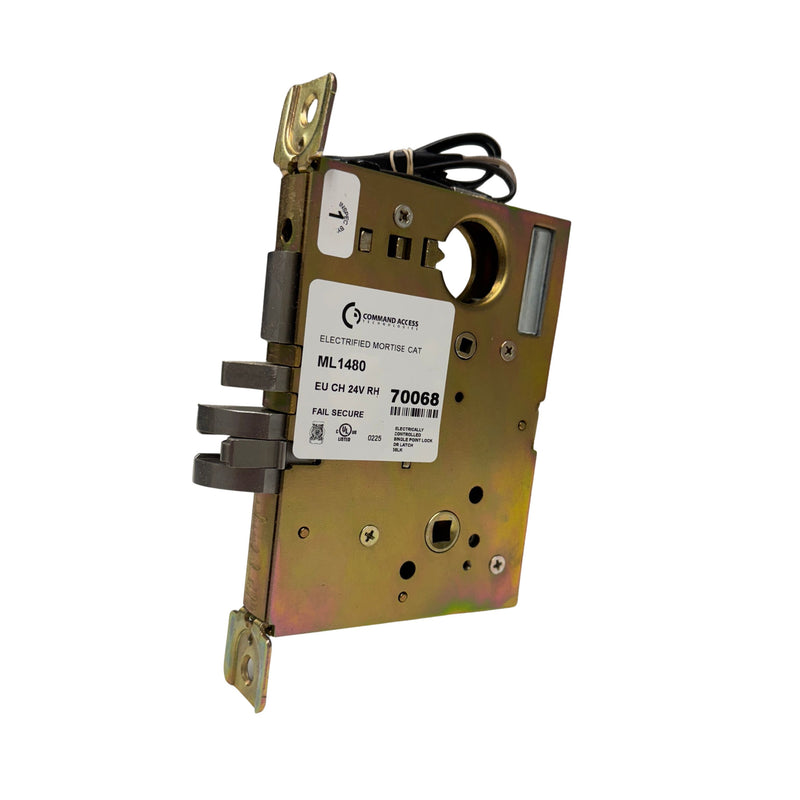

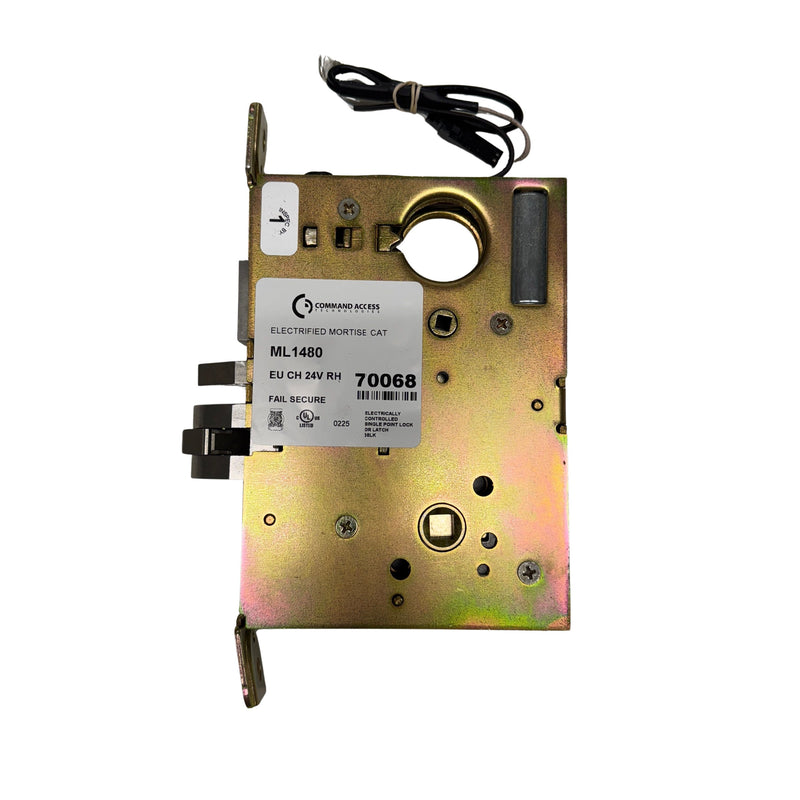

The Command Access ML1480‑EU‑CH‑24V is a 24V electrified mortise lock chassis from the ML1 retrofit series, built for compatibility with Schlage L-Series hardware. This entry function lock includes both latchbolt and deadbolt operation, fail secure functionality, and is engineered for high-traffic, security-focused environments requiring electronic access control.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Series: ML1 – Schlage L-Series Retrofit

• Electrified By: Command Access Technologies

• Model: ML1480‑EU‑CH

• Voltage: 24 VDC

• Function: Entry with Deadbolt (EU – electronically unlocked)

• Operation: Fail Secure – outside lever remains locked without power

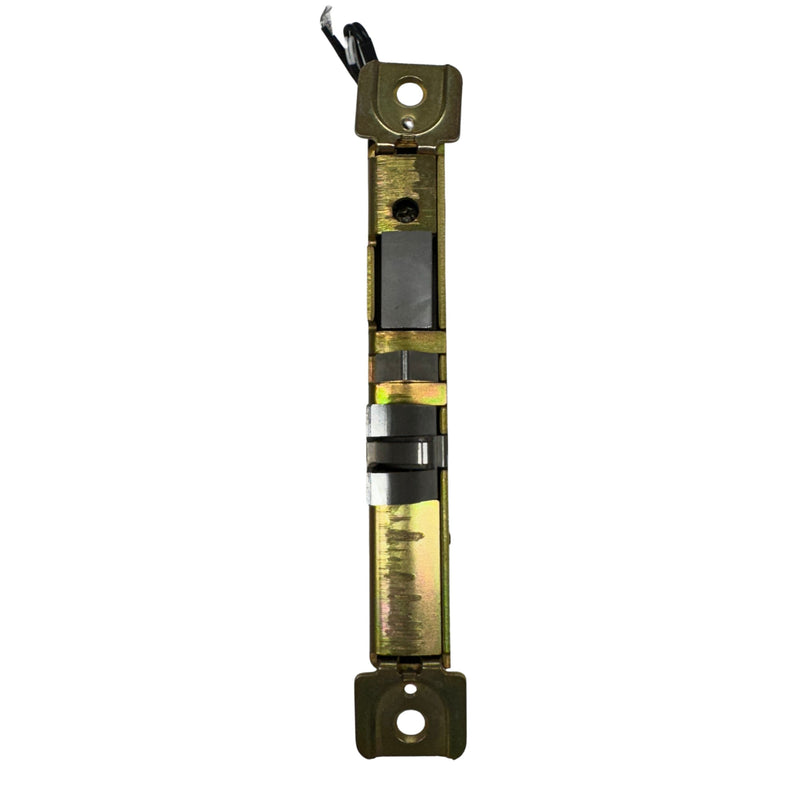

• Deadbolt Feature:

  • Both latch and deadbolt retract via key or inside lever

  • Outside lever retracts latch and deadbolt when powered

  • Inside lever always active for egress

• Power Requirements:

  • Amperage: 350 mA

  • Solenoid resistance: 69 Ω

  • Power consumption: 8 watts

• Power Compatibility: 24VAC/DC (±10%)

• Handing: Field reversible (EL/EU configurable)

• Solenoid: Continuous duty rated

• Warranty: 3-year no-hassle warranty from Command Access

Features & Benefits

• Command Access Modified: Electrified retrofit for Schlage L-Series trim

• Entry with Deadbolt Functionality:

  • Electronic control of latch and deadbolt

  • Manual key override for both locking mechanisms

  • Inside lever always provides safe egress

• Fail Secure Operation: Outside lever locked without power

• Grade 1 Construction: Built for durability and security

• Installation Flexibility: Field-reversible handing and function (EL/EU)

• Efficient Power Use: Low current draw with continuous-duty solenoid

Common Applications

• Secured perimeter doors

• Commercial building entries

• IT and server room access points

• Conference or classroom door retrofits

• Anywhere requiring deadbolt locking with electronic control
