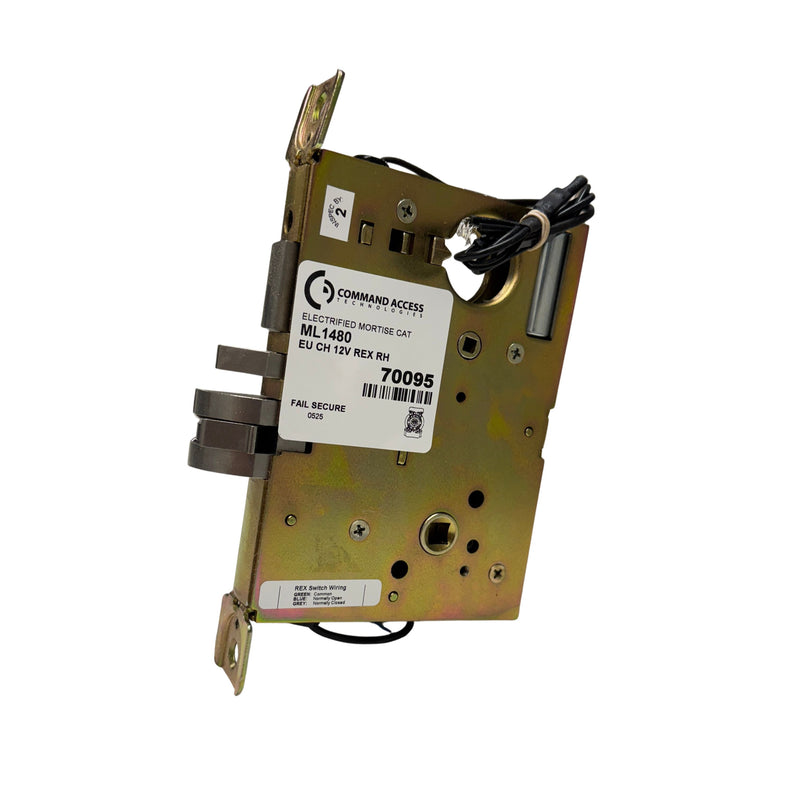

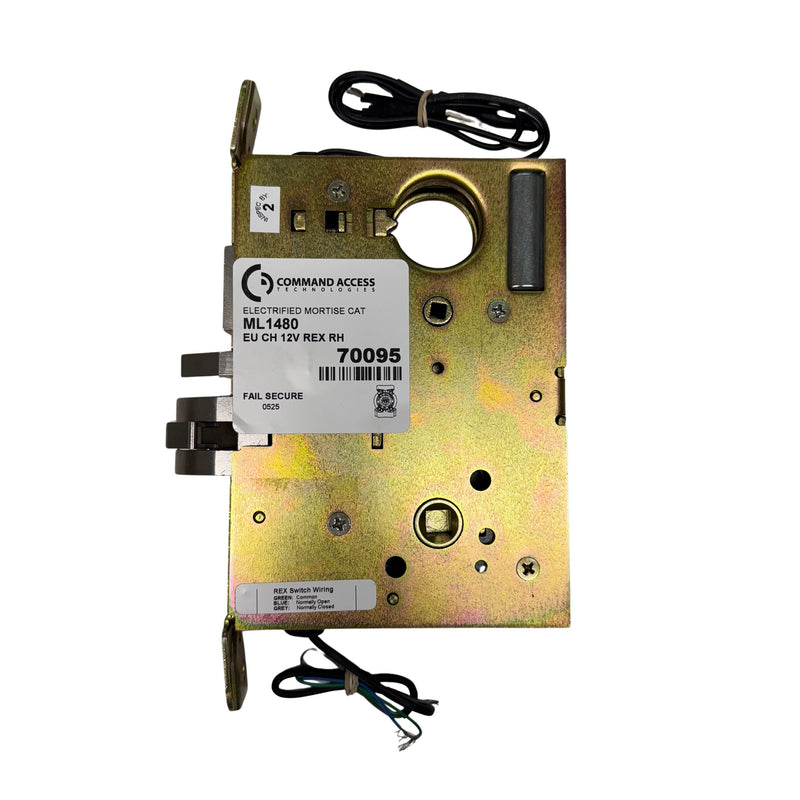

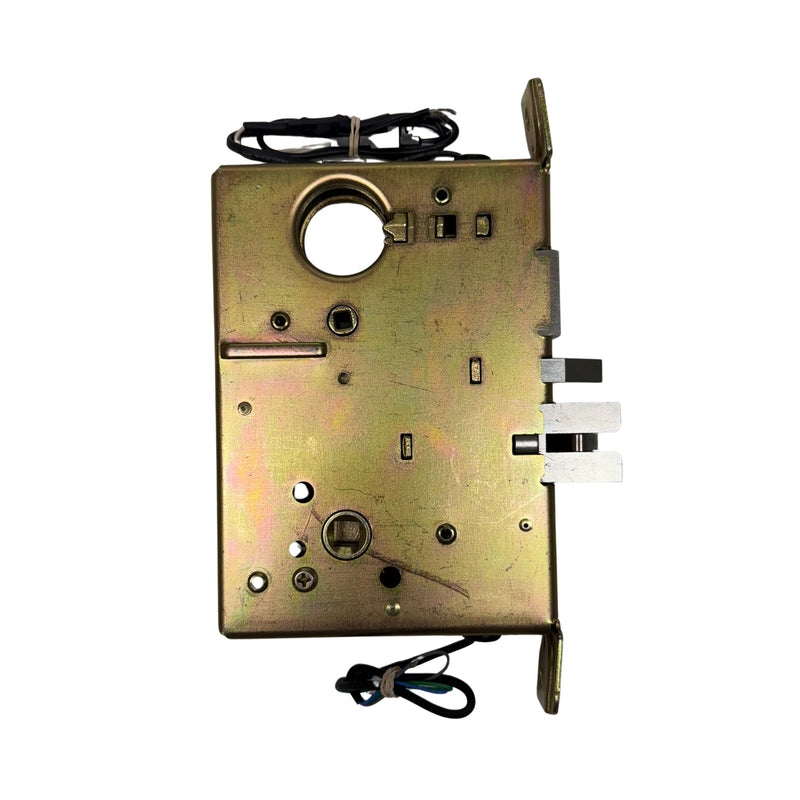

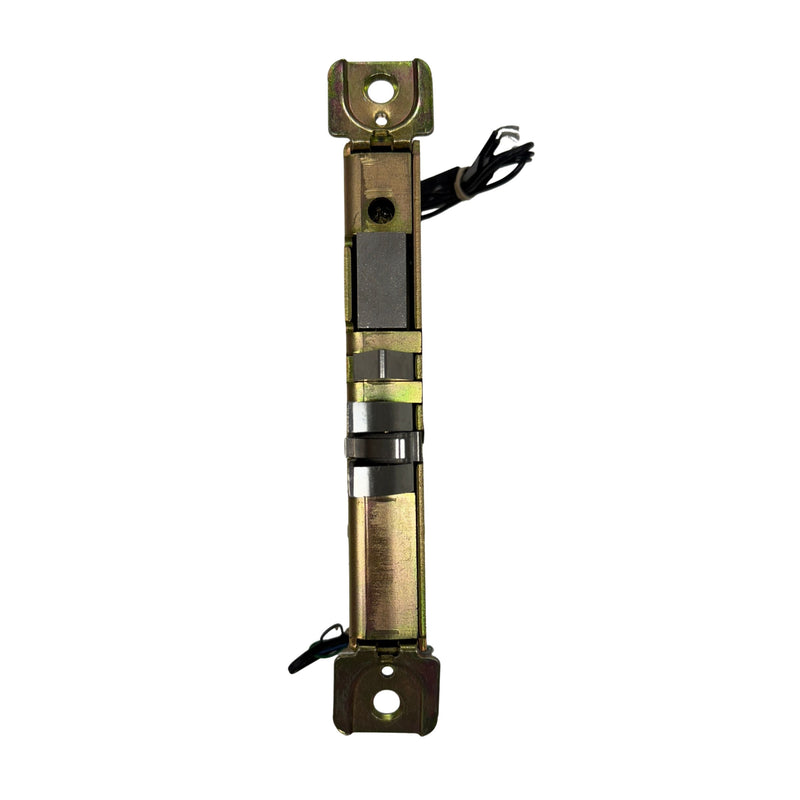

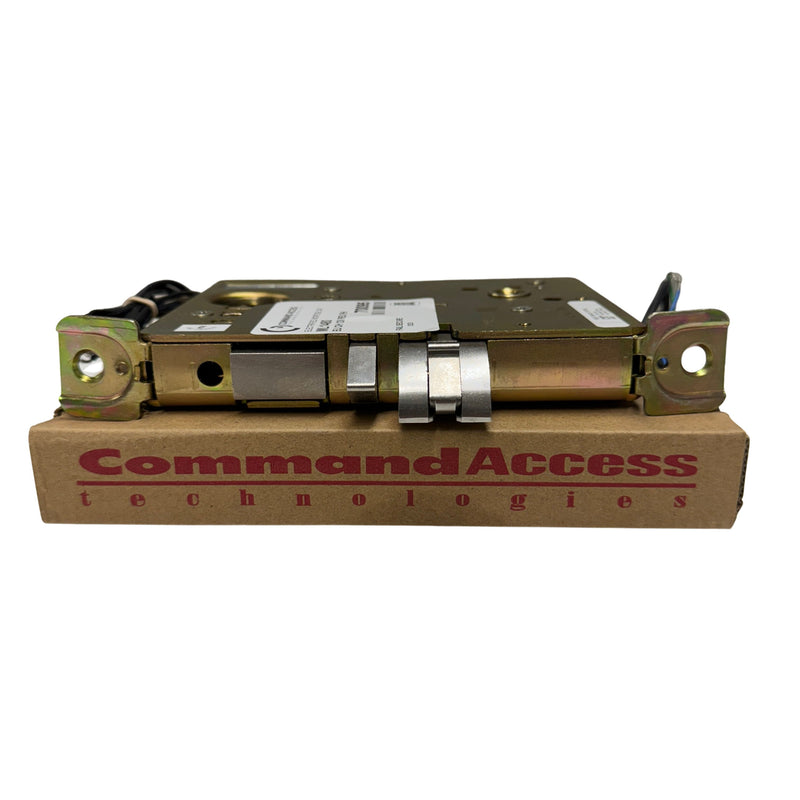

Command Access ML1480‑EU‑CH‑12V‑REX – Electrified Mortise Lock, Entry with Deadbolt, Schlage Retrofit, Fail Secure, 12V with REX

Product Description

Overview

The Command Access ML1480‑EU‑CH‑12V‑REX is a 12V electrified mortise lock from the ML1 retrofit series, built to integrate with Schlage L-Series trim. With an entry function that controls both latchbolt and deadbolt, fail secure configuration, and built-in Request to Exit (REX), it’s ideal for secure, monitored openings where privacy and electronic access are required.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Series: ML1 – Schlage L-Series Retrofit

• Electrified By: Command Access Technologies

• Model: ML1480‑EU‑CH

• Voltage: 12 VDC

• Function: Entry with Deadbolt (EU – electronically unlocked)

• Operation: Fail Secure – outside lever remains locked when power is lost

• Deadbolt Feature:

  • Key retracts latch and deadbolt from outside

  • Inside lever retracts both at all times

  • Power unlocks outside lever and enables latch/deadbolt retraction

• REX Function: Integrated Request to Exit for monitoring systems

• Power Requirements:

  • Amperage: 700 mA

  • Solenoid resistance: 18 Ω

  • Power consumption: 8 watts

• Power Compatibility: Operates on 12VAC/DC (±10%)

• Handing: Field reversible (EL/EU configurable)

• Solenoid: Continuous duty rated

• Warranty: Command Access 3-year no-hassle warranty

Features & Benefits

• Electrified by Command Access: Designed for seamless Schlage L-Series trim retrofit

• Entry with Deadbolt Functionality:

  • Full control of latch and deadbolt via key, lever, or power

  • Inside lever always active for emergency egress

• Fail Secure Design: Prevents unauthorized access during power loss

• Built-in REX: Sends exit signal for monitoring or alarms

• Grade 1 Quality: Engineered for commercial-grade performance

• Easy Configuration: EL/EU switchable, reversible handing on-site

• Low Voltage Ready: Works with 12V access control systems

Common Applications

• Commercial entry doors

• Security-sensitive interior rooms

• Retrofit projects requiring deadbolt and monitoring

• Classrooms and meeting spaces with secure exit control

• Private or restricted-access offices
