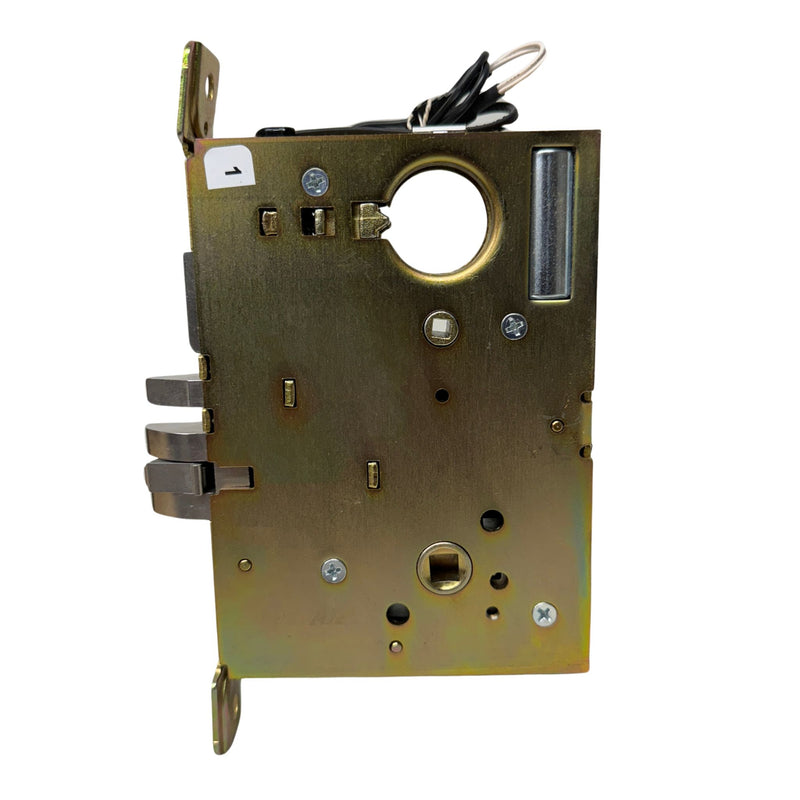

ML1480-EU-CH-12V - Electrified Mortise Lock - Schlage L-Series Retrofit - 12V Fail Secure Entrance Function with Deadbolt

Product Description

Overview

The Command Access ML1480‑EU‑CH‑12V is a 12V electrified mortise lock from the ML1 retrofit series, designed to replace Schlage L-Series lock bodies. It features an entry function with latchbolt and deadbolt operation, fail secure configuration, and a Grade 1 chassis built for durability in access-controlled commercial settings.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Series: ML1 – Schlage L-Series Retrofit

• Electrified By: Command Access Technologies

• Model: ML1480‑EU‑CH

• Voltage: 12 VDC

• Function: Entry with Deadbolt (EU – electronically unlocked)

• Operation: Fail Secure – outside lever locked when unpowered

• Deadbolt Feature:

  • Latchbolt and deadbolt retract via key (outside) or lever (inside)

  • Powered outside lever retracts both latch and deadbolt

  • Inside lever always active for safe egress

• Power Requirements:

  • Amperage: 700 mA

  • Solenoid resistance: 18 Ω

  • Power consumption: 8 watts

• Power Compatibility: Operates on 12VAC/DC (±10%)

• Handing: Field reversible (EL/EU configurable)

• Solenoid: Continuous duty rated

• Warranty: 3-year no-hassle warranty from Command Access

Features & Benefits

• Command Access Retrofit: Electrified for Schlage L-Series compatibility

• Entry Function with Deadbolt:

  • Latch and deadbolt retract by key or inside lever

  • Outside lever operates when powered

• Fail Secure Security: Locks outside lever during power outages

• Built to Last: Grade 1 construction for high-traffic installations

• Field Configurable: EL/EU convertible and handing reversible

• Power Efficient: Designed for low-draw 12V access control systems

Common Applications

• Building entry points

• Secure classroom or meeting spaces

• Office doors requiring deadbolt protection

• High-security commercial environments

• Retrofit upgrades using Schlage L-Series trim
