SKU#: ML05‑EUCH‑24V‑REX
Availability: 4 in stock
Ships from: Orange, CA

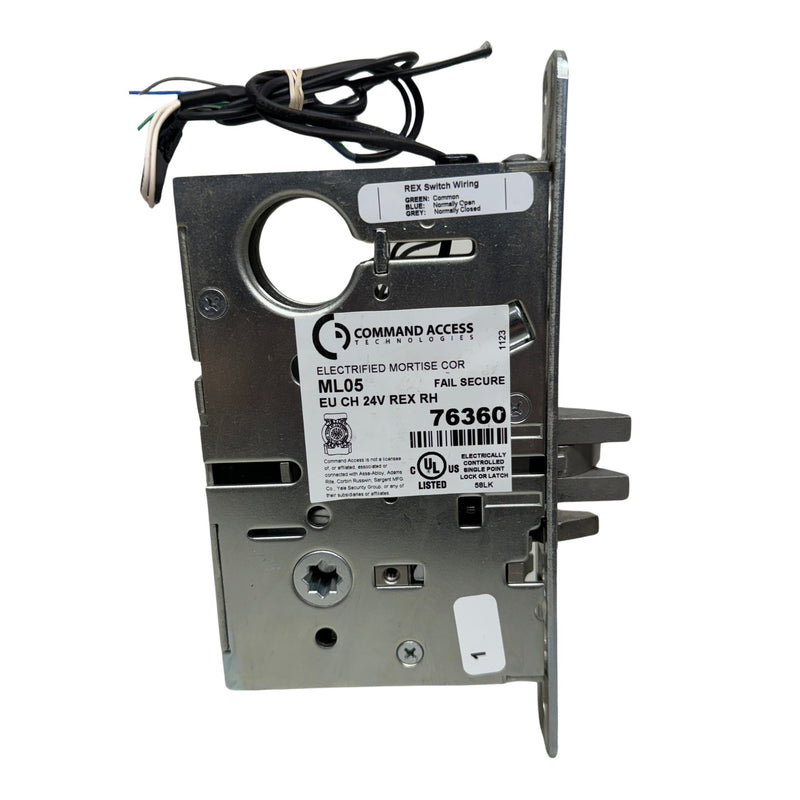

The Command Access ML05‑EUCH‑24V‑REX is a 24V electrified mortise lock chassis engineered to retrofit Corbin Russwin ML2000 series hardware. Designed for storeroom function with deadbolt, fail secure operation, and built-in Request to Exit (REX), this lock is ideal for high-traffic, secure environments where safety and access control are critical.
Product Type: Electrified Mortise Lock Chassis
Series: ML05 – Retrofit for Corbin Russwin ML2000
Electrified By: Command Access Technologies
Voltage: 24 VDC
Function: Storeroom with Deadbolt (EU – electronically unlocked)
Operation: Fail Secure – outside lever locked when unpowered
REX Function: Integrated Request to Exit
Power Requirements:
Amperage: 350 mA
Solenoid Resistance: 69 Ω
Power Consumption: 8 watts
Power Compatibility: Accepts 24VAC/DC (±10%) via plug-in bridge rectifier
Handing: Field reversible (EL/EU configurable)
Solenoid: Continuous duty rated
Warranty: 3-year no-hassle warranty from Command Access
Command Access Retrofit: Electrified lock designed to replace Corbin Russwin ML2000 series
Storeroom Function with Deadbolt:
Outside lever unlocked electronically
Latchbolt and deadbolt retract via key from outside or inside lever
Inside lever always active for egress
Fail Secure Operation: Remains locked when power is lost
Built-in REX: Request to Exit switch supports access monitoring and egress signaling
Durable & Efficient: Grade 1 chassis, low current draw, continuous-duty solenoid
Power Options: Works with 24VAC/DC, optional intelligent current reduction modules available
Flexible Configuration: Supports EL/EU, REX, AE, LBM, DPS, SCM, and CRU2 options
Lobby doors
Data and server rooms
Classroom and corridor entry points
Commercial or institutional perimeter access
Retrofitting existing Corbin Russwin ML2000 installations
