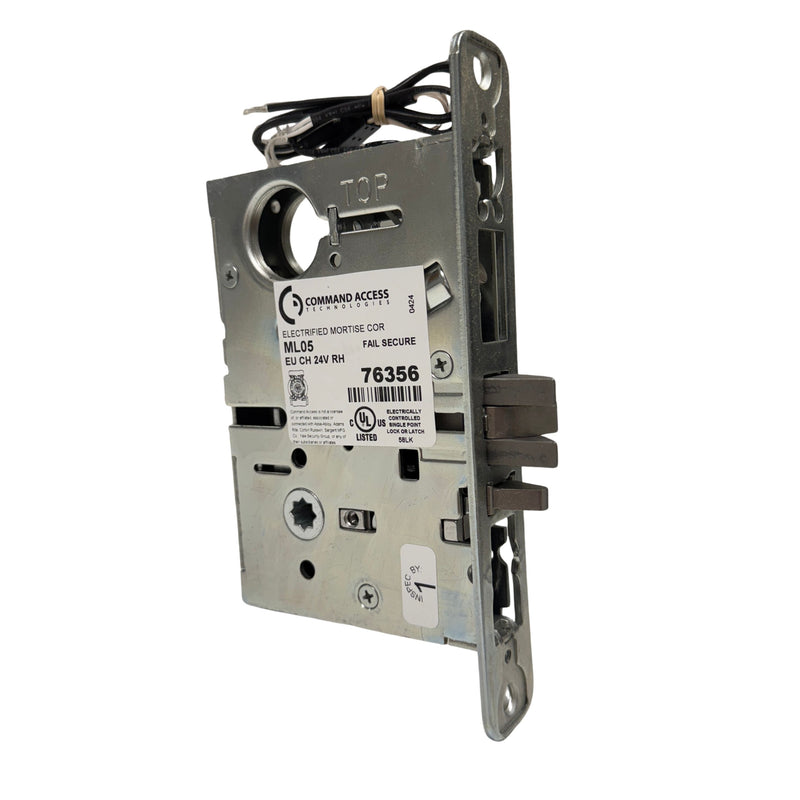

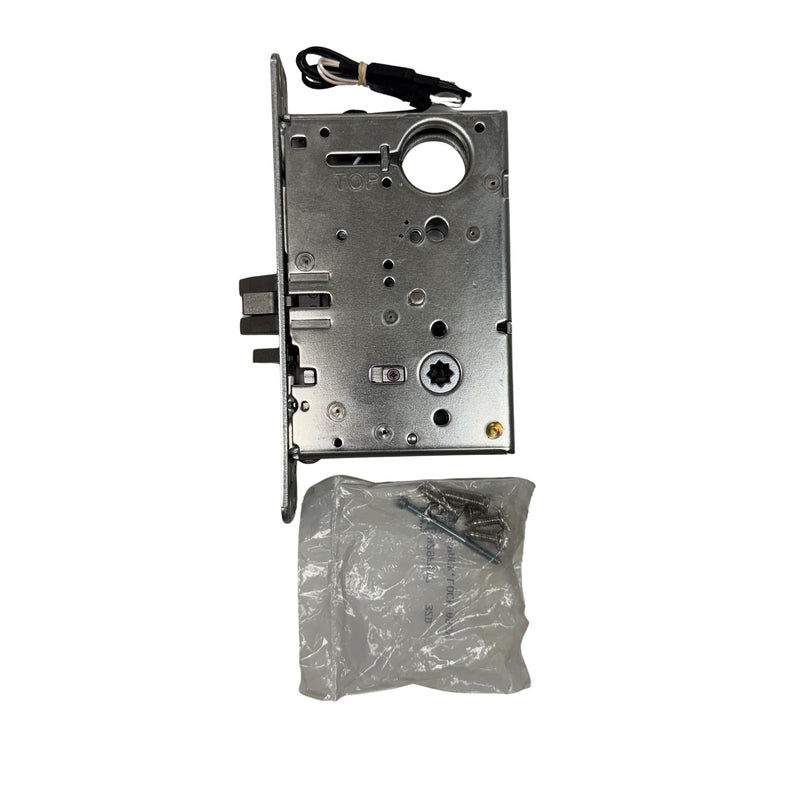

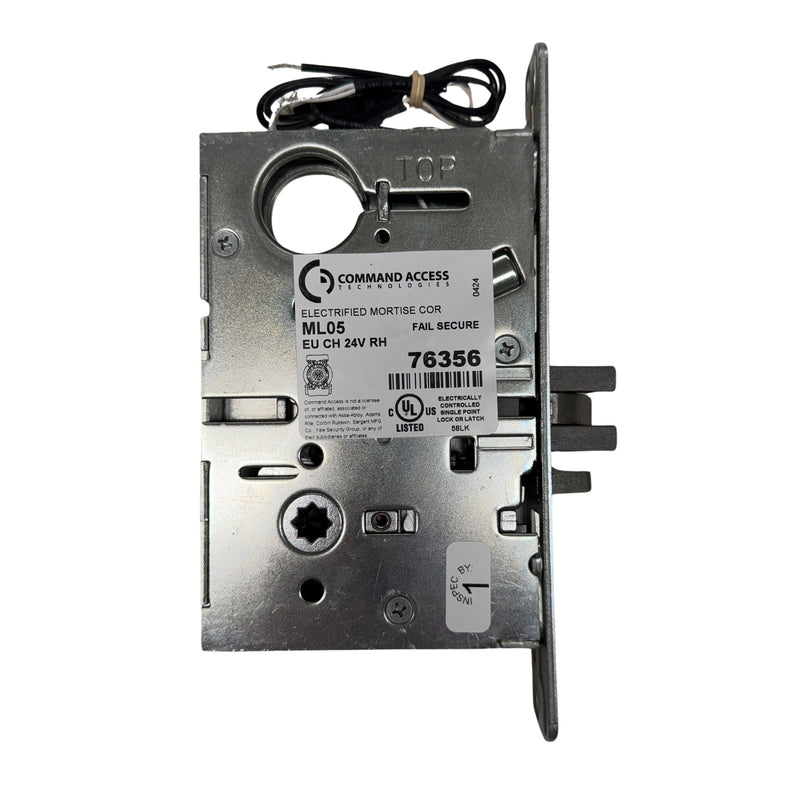

The Command Access ML05‑EUCH‑24V is a 24V electrified mortise lock chassis built to retrofit Corbin Russwin ML2000 series locks. Featuring a storeroom function with deadbolt and fail secure operation, this lock is ideal for demanding commercial settings where security, durability, and access control integration are essential.
Product Type: Electrified Mortise Lock Chassis
Series: ML05 – Corbin Russwin ML2000 Retrofit
Electrified By: Command Access Technologies
Model: ML05‑EU-CH
Voltage: 24 VDC
Function: Storeroom with Deadbolt (EU – electronically unlocked)
Operation: Fail Secure – outside lever locked when power is off
Power Requirements:
Amperage: 350 mA
Solenoid resistance: 69 Ω
Power consumption: 8 watts
Power Compatibility: 24VAC/DC (±10%) via plug-in bridge rectifier
Handing: Field reversible (EL/EU configurable)
Solenoid: Continuous duty rated
Warranty: 3-year no-hassle warranty from Command Access
Command Access Modified: Engineered for Corbin Russwin ML2000 retrofits

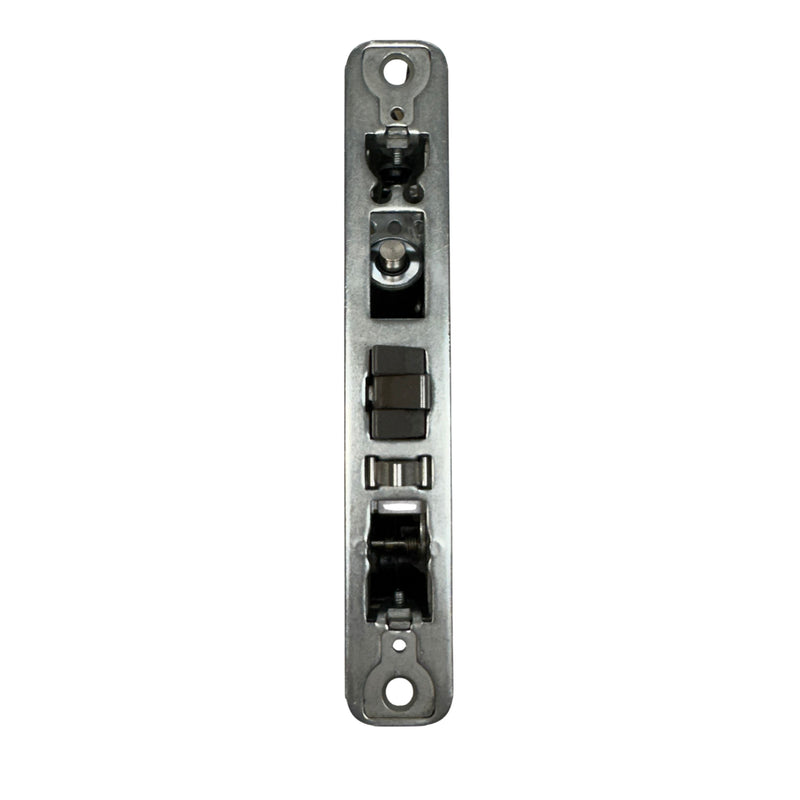

Storeroom Function with Deadbolt:
Outside lever electronically unlocked
Latchbolt and deadbolt retract via key (outside) or lever (inside)
Inside lever always provides free egress
Fail Secure Operation: Ensures lock remains secure during power loss
Heavy-Duty Construction: Grade 1 chassis for long-term durability
Versatile Configuration: Field-switchable between EL and EU functions
Efficient Power Use: Low current draw for energy-saving access control setups
Stairwell and corridor doors
Office building entry points
IT or mechanical room access
Public restroom and private area access
Retrofit upgrades for Corbin Russwin ML2000 installations
