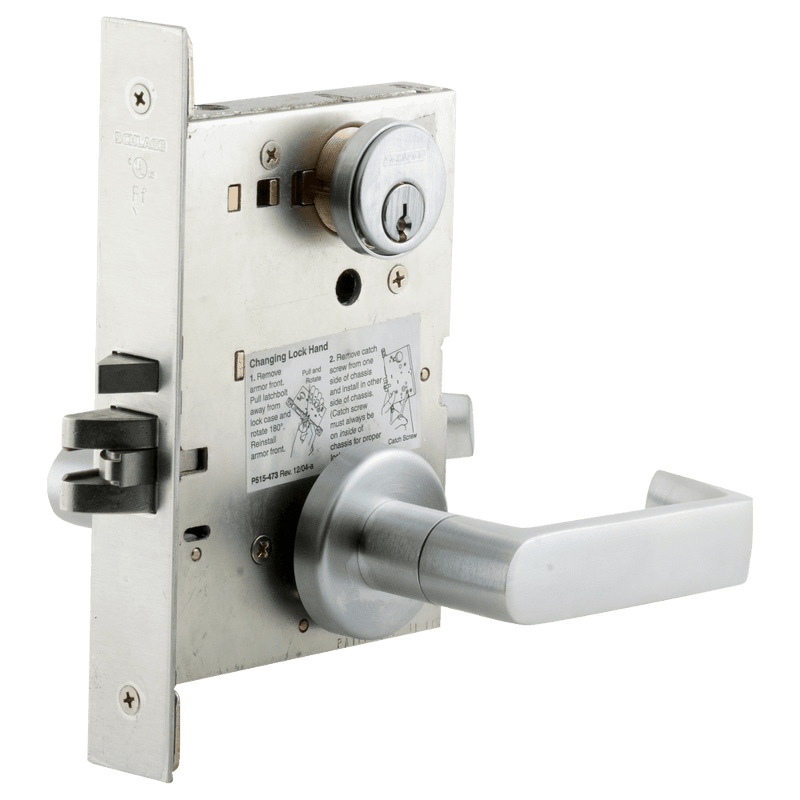

L9092EUP-06A-626-RX - Electrified Mortise Lock - 06 Lever - Satin Chrome - Fail Secure/Fail Safe

The Schlage L9092EUP-06A-626-RX is a Grade 1 electrified mortise lock from the L909x Series, built for access-controlled openings that demand reliability and flexibility. This lock features field-selectable EL (fail safe) / EU (fail secure) operation, a universal 12/24VDC input, and a factory-installed Request-to-Exit (RX) switch that monitors inside lever rotation for integration with access control and security systems. Supplied complete with 06A lever/rose trim in Satin Chrome (626) finish and a conventional cylinder prep.

Key Features

• Function 9092EU/EL: Outside lever electrically locked/unlocked; latchbolt retracted by lever inside or by key outside when locked. Inside lever always free for immediate egress.
• Field-Selectable EL/EU: Fail safe or fail secure operation is selected in the field with a switch inside the lock case — no need to special-order a fixed function.
• Universal Voltage: Auto-detecting 12VDC or 24VDC input eliminates the need to specify voltage at time of order.
• Request-to-Exit (RX) Switch: Factory-installed microswitch monitors inside lever rotation and signals the security system when the opening is used — field-installable without opening the lock case.
• Allegion Connect Ready: Compatible with Allegion Connect quick-connect Molex harness system for simplified wiring and maintenance (harnesses/hinges sold separately), or can be wired with traditional splicing.
• Energy Efficient: Low holding current design eliminates "hot lever" syndrome common to older electrified mortise locks.
• Grade 1 & UL Listed: UL listed for use on 3-hour fire-rated door assemblies; UL294 access control rated.

Specifications

• Lock Function: 9092 EU/EL – Electrified, both levers, outside cylinder override
• Lever Design: 06 Lever, A Rose
• Finish: 626 / US26D Satin Chromium Plated
• Switch Type: RX (Request to Exit)
• Operating Voltage: 12VDC / 24VDC, auto-detecting, field-selectable EL/EU
• Current Draw: Approx. 400mA
• Door Thickness: 1-3/4" standard
• Backset: 2-3/4"
• Cylinder: Conventional cylinder prep, keyed different, 2 keys included
• Keyway: Everest 29 / C123
• Handing: Field reversible
• Certifications: ANSI/BHMA Grade 1, UL Listed, UL294, ADA compliant, 3-hour fire rated
• Limited Warranty: 1-year electrical / 3-year mechanical limited warranty

The L9092EUP-06A-626-RX is built for facilities integrating mechanical security with electronic access control — classrooms, healthcare corridors, and commercial entries that need reliable fail-safe/fail-secure flexibility without re-ordering for voltage or function changes.
