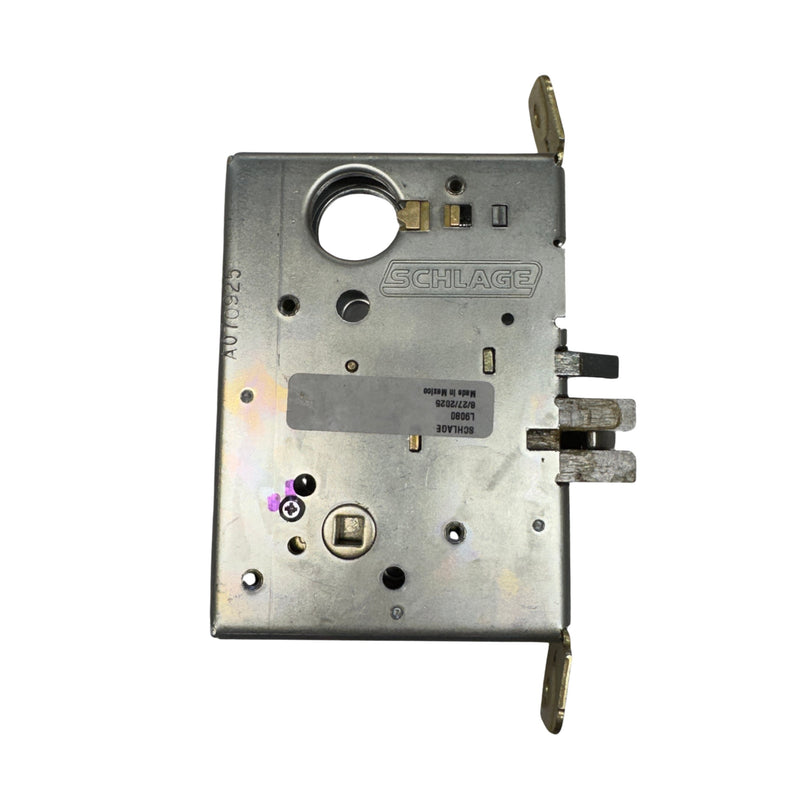

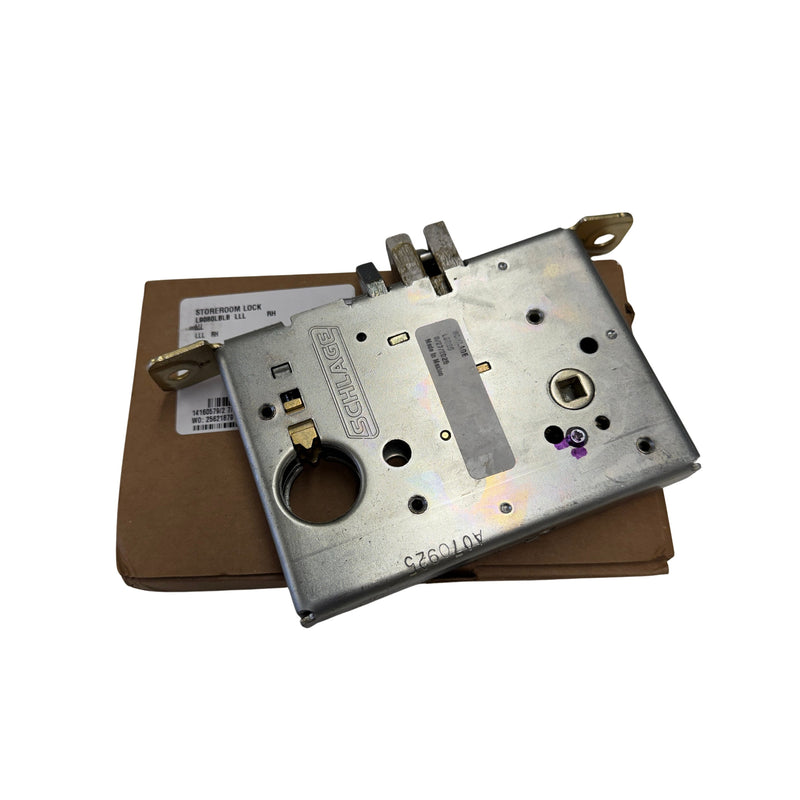

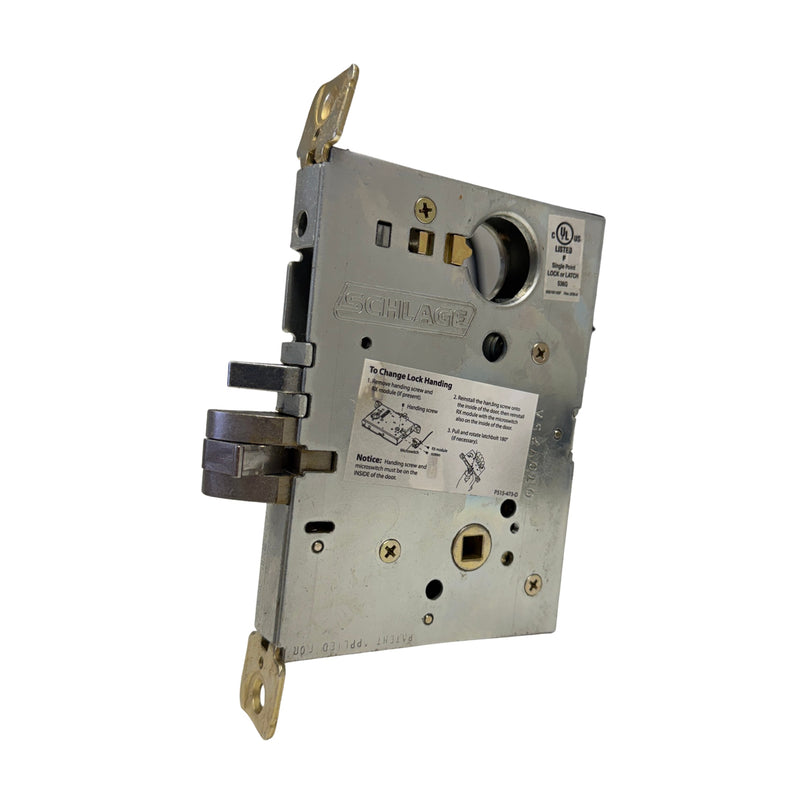

L9080LB-RH-134 - Storeroom Mortise Lock Body Only

Product Overview

The Schlage L9080LB RH 134 is a Grade 1 extra heavy-duty storeroom mortise lock body in Right Hand configuration. The "LB" designation means this is a lock body only — cylinders and trim are ordered separately — making it ideal for specification projects where the architect or contractor supplies their own cylinder system, interchangeable core, or custom trim. In the storeroom function (ANSI F86), the inside lever always allows free egress while the outside lever requires a key for entry. Built on Schlage's L9000 Series platform, this lock body is constructed for institutional and industrial environments — schools, hospitals, government facilities, and commercial buildings — where consistent, dependable performance under constant use is non-negotiable. Compatible with Schlage L-Series trim and cylinder systems. ANSI Grade 1, UL listed.

Product Features

• Storeroom Function (ANSI F86): Outside lever always locked — key required for entry; inside lever always free for egress
• Lock Body Only (LB): Order cylinders and trim separately — ideal for IC core, proprietary cylinder, or custom trim specification projects
• Right Hand (RH): Specified for right-hand door swing applications
• Extra Heavy-Duty Construction: Schlage L9000 Series built for institutional and industrial high-traffic applications
• Grade 1 Certified: Meets ANSI/BHMA A156.13 Grade 1 requirements for mortise locks
• Compatible with L-Series Trim: Accepts Schlage L-Series lever and rose trim, knob trim, and IC core prep options
• Standard Mortise Prep: Fits standard commercial mortise door prep; ideal for new construction and retrofit
• Mortise Cylinder Pocket: Accepts Schlage and compatible mortise cylinders (sold separately)
• UL/cUL Listed: Fire door rated
• ANSI Grade 1

Product Specifications

• Part Number: L9080LB RH 134
• Brand: Schlage
• Series: L9000 Series Extra Heavy-Duty Mortise Lock
• Configuration: LB - Lock Body Only (cylinder and trim not included)
• Function: Storeroom - ANSI F86
• Handing: RH - Right Hand
• Finish: 134
• Backset: 2-3/4" standard
• Door Thickness: 1-3/4" standard
• Strike: ANSI standard lip strike included
• Cylinder: Not included — order separately (Schlage L-Series mortise cylinder)
• Trim: Not included — order separately (Schlage L-Series lever or knob trim)
• Grade: ANSI/BHMA Grade 1
• UL/cUL: Listed for fire door applications

Order Today

SNTRY Supply stocks Schlage L9000 Series mortise lock components. Contact us for cylinder, trim, and IC core options to complete your specification.
