9400-BSP - Surface Mounted Electric Strike - Rim Exit Devices - Field Selectable - Black Suede

Product Overview

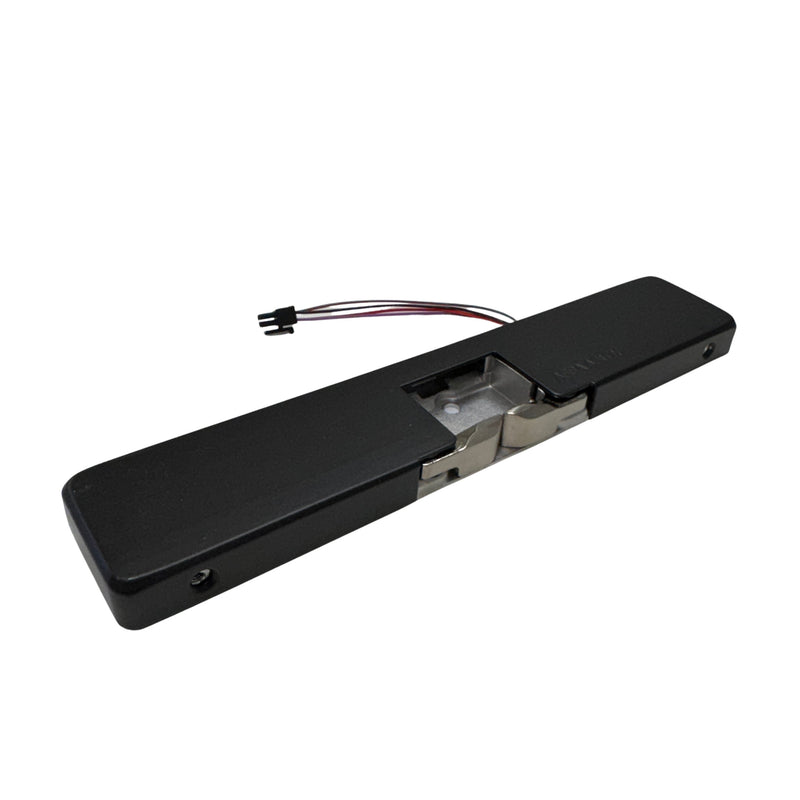

The HES 9400-BSP is a slim-line, surface mounted electric strike designed for rim exit devices using a 1/2" Pullman latch, in Black Suede Powder Coat (BSP) finish. All components are completely encased within the 1/2" thick housing — no frame cutting required. Simply place the strike on the surface of the frame, align it with the exit device latchbolt, and install. The 9400 ships with a 1/8" spacer plate to accommodate varying door gaps. Field selectable for fail safe or fail secure operation, and auto-sensing 12/24 VDC, the 9400 fits virtually any access control power supply without jumpers or settings. With 1,500 lb. static strength, Grade 1 certification, UL 1034 outdoor burglary-resistant listing, and HES's 10-year SecuriCare no-fault warranty, it is the professional standard for rim exit device access control applications.

Product Features

• Surface Mounted: No frame cutting required — all components encased in 1/2" thick stainless steel housing; mounts directly to frame surface
• For Rim Exit Devices: Designed specifically to accommodate 1/2" Pullman latch on rim exit devices
• Field Selectable Fail Safe / Fail Secure: Configure on-site without factory return or special tools
• Auto-Sensing Dual Voltage: 12/24 VDC — automatically detects input voltage; no jumper required
• Decorative Cover: Smooth cover conceals mounting screws for a clean, professional appearance
• 1/8" Spacer Plate Included: Accommodates varying door gaps out of the box
• Horizontal Adjustability: Fine-tune alignment for proper latch engagement
• Internally Mounted Solenoid: Tamper resistant; all components protected within housing
• Non-Handed: Installs on any door without special ordering
• Grade 1 Certified: Exceeds ANSI/BHMA A156.31 Grade 1 requirements
• Static Strength: 1,500 lbs.
• Dynamic Strength: 70 ft-lbs.
• Endurance: 1 million cycles
• UL Listed: UL 1034 burglary-resistant and suitable for outdoor use; UL 294 Listed
• Finish: BSP - Black Suede Powder Coat
• RoHS Compliant
• 10-Year SecuriCare No-Fault Warranty

Product Specifications

• Part Number: 9400-BSP
• Brand: HES (ASSA ABLOY)
• Series: 9400 Series Surface Mounted Electric Strike
• Finish: BSP - Black Suede Powder Coat
• Application: Rim exit devices with 1/2" Pullman latch
• Mount: Surface Mounted (no frame cutout required)

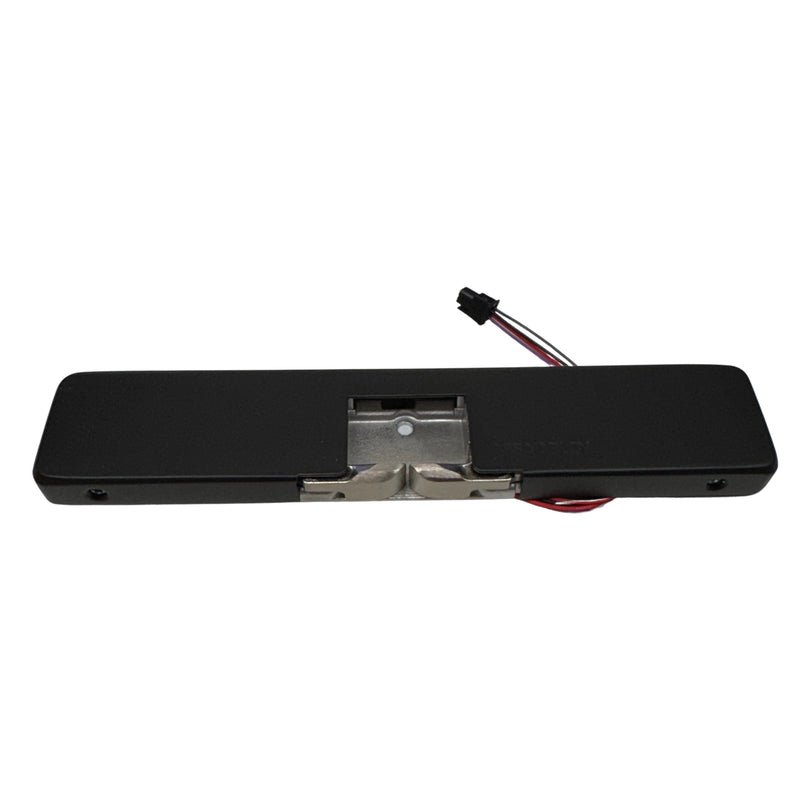

• Housing Thickness: 1/2"
• Operating Voltage: 12/24 VDC (auto-sensing)
• Amperage: 450mA @ 12VDC / 250mA @ 24VDC
• Function: Field Selectable Fail Safe / Fail Secure
• Frame Application: Metal and Wood
• Handing: Non-Handed
• Static Strength: 1,500 lbs.
• Dynamic Strength: 70 ft-lbs.
• Endurance: 1 million cycles

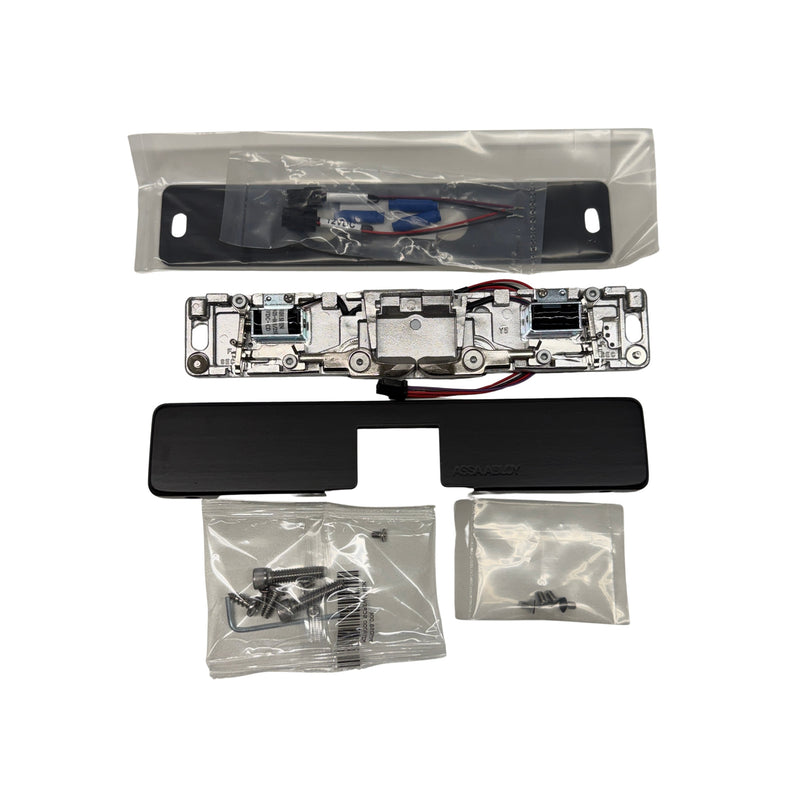

• Includes: 1/8" spacer plate, mounting hardware
• ANSI Standard: A156.31, Grade 1
• UL Listings: UL 1034 (outdoor/burglary resistant), UL 294
• Warranty: 10-Year SecuriCare No-Fault
