Your Price:
$140.00USD
List Price: $0.00USD
SKU#: 5200C-630
Availability: 4 in stock
Ships from: Orange, CA
Overview:

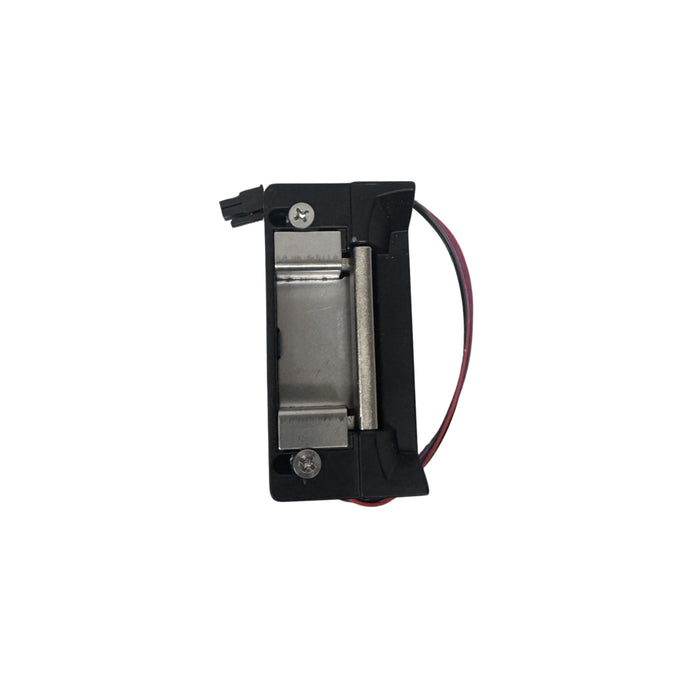

The HES 5200C-630 is a 12/24V dual voltage Grade 1 electric strike featuring horizontal adjustability and a satin stainless steel finish, packaged for easy installation.
Specifications:
Voltage: Dual voltage 12/24V DC/AC
Application: Metal & wood frames
Fail Mode: Field-selectable fail secure or fail safe
Strength Ratings: 1,500 lbs static, 70 ft-lbs dynamic
Durability: 500,000+ cycles (ANSI/BHMA Grade 1)
Latchbolt Compatibility: Accepts 5/8″ to 3/4″ latchbolt (up to 3/4″ with 1/8″ door gap)
Strike Body Depth: 1-1/16″
Handing: Non-handed
Connector: Plug-in style
Power Draw:
0.24 A @ 12 VDC/VAC
0.12 A @ 24 VDC/VAC

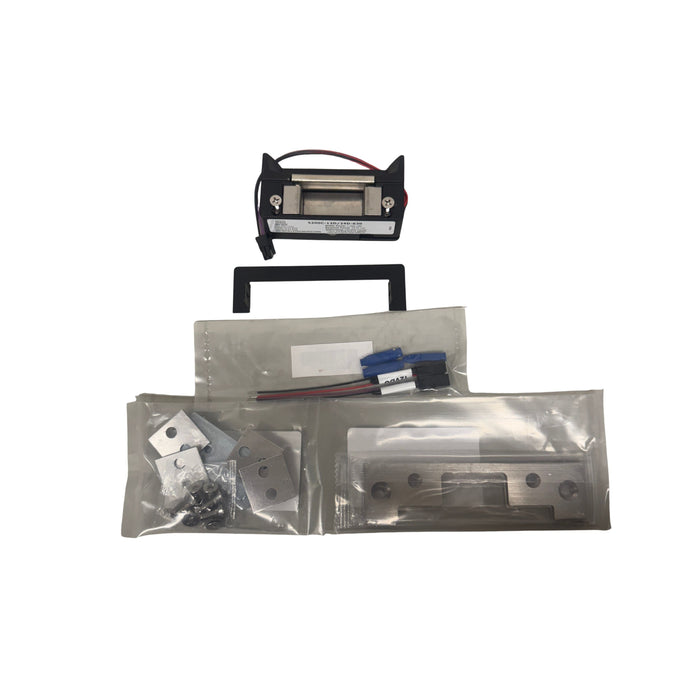

Includes:
501 & 501A faceplates
Plug-in connector
Trim enhancer
Features and Benefits:
Installer-Friendly Design: Horizontal in-frame adjustability allows post-installation alignment—ideal for retrofit or tight-tolerance applications.
Complete Pac Convenience: Comes with faceplates and mounting hardware for streamlined setup.
Versatile Power Options: Operates on 12 or 24 volt AC/DC input; easily switches between fail-safe and fail-secure modes.
Built to Perform: Non-handed, tamper-resistant, and designed for high-traffic, high-security environments.
Assured Longevity: Rated to ANSI/BHMA Grade 1, backed by a 5-year limited warranty.
Additional Information:
Optional latchbolt monitoring (LBM) and latchbolt strike monitoring (LBSM) available. Also compatible with Smart Pac for increased power protection and warranty extension up to 10 years.
