Cal Royal STR05L US26D
SNTRY Supply
$100.00
List: $153.60
only 2 left
Loading recommendations...
Shop Popular Categories
Your Price:
$135.00USD
List Price: $192.00USD
SKU#: ESC7705
Availability: 4 in stock
Ships from: Orange, CA

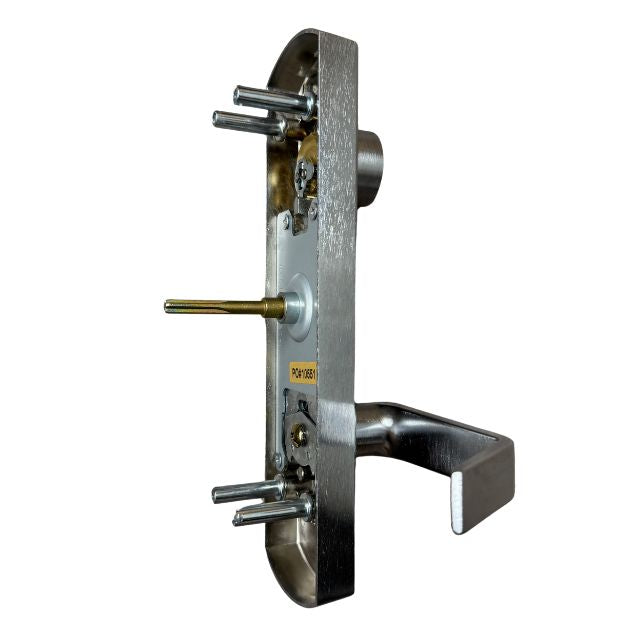

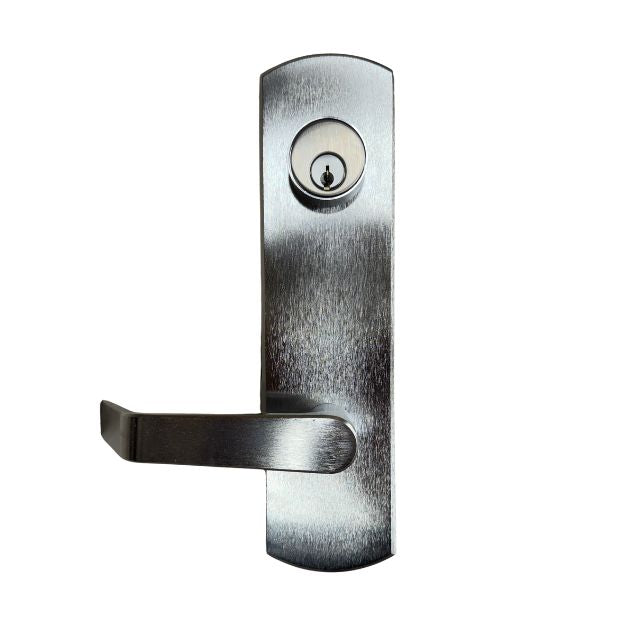

The Cal Royal ESC7705 Storeroom Lever Trim is engineered for commercial-grade durability and seamless integration with the Cal Royal 7700 and 7760V Series exit devices. Its reinforced construction and low‑profile escutcheon deliver reliable performance in demanding environments.
Function: Storeroom lever trim
Compatibility: Cal Royal 7700 and 7760V Series exit devices
Lever Design: Rigid lever with double heavy-duty springs to prevent sagging
Internal Components: Hardened steel heavy-duty tailpiece
Certification: ANSI/BHMA Grade 1 rated
Cylinder: Includes standard 6‑pin Schlage C mortise cylinder
Door Thickness Compatibility: Fits standard 1‑3/4″ doors (use Part Tail#3 for 2‑1/4″ doors)
Escutcheon Dimensions: 2‑3/4″ wide × 10‑1/4″ high
Lever Length: 4‑3/4″
Door Prep Coverage: Fits and covers standard 2‑1/8″ 161 cutout
Designed for storeroom function with Cal Royal 7700/7760V series exit devices
Built for heavy use with reinforced lever and internal springs—no sag over time
Hardened steel tailpiece ensures enhanced durability and reliability
ANSI/BHMA Grade 1 rated for maximum commercial strength and security
Includes Schlage C 6‑pin cylinder for immediate operability
Escutcheon plate conceals standard door prep neatly for a clean finish
Accommodates standard and over-sized door thickness (up to 2‑1/4″ with tailpiece kit)
Ideal for commercial and institutional applications, the ESC7705 offers robust performance and straightforward installation. The integrated escutcheon helps cover existing door preparations, making it an excellent retrofit or upgrade option.
Maximum available: 1
