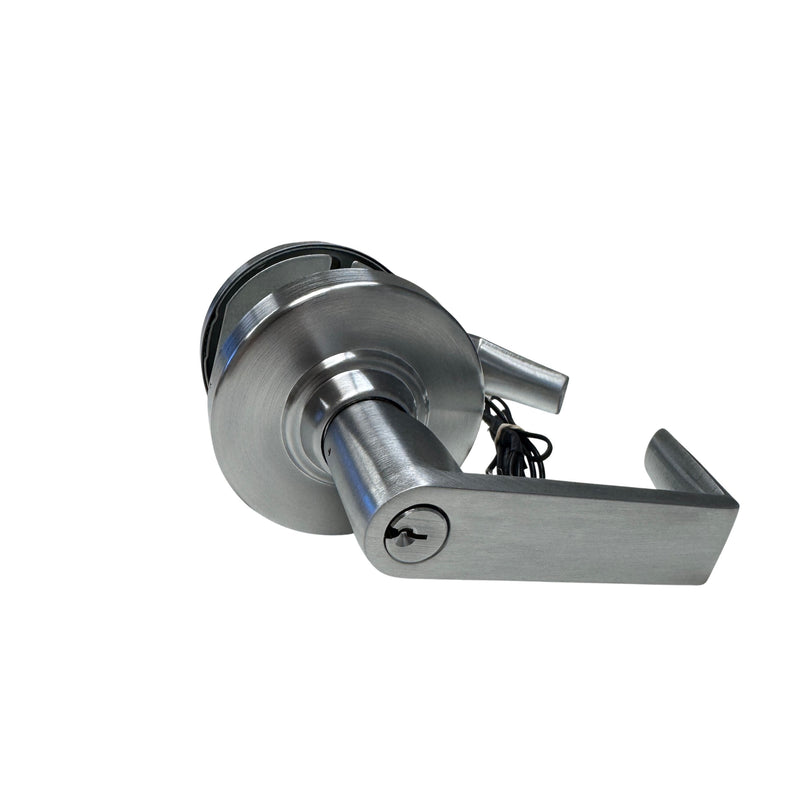

CLN80PDEU-12V-RHO-626-RX - Electrified Lock - 12V Fail Secure with REX - Satin Chrome

Product Description

The Command Access CLN80PDEU RHO 12V 626 RX is a sophisticated electrified cylindrical lock based on the original Schlage ND80 Series mechanical chassis, expertly electrified by Command Access Technologies. Featuring a refined Rhodes (RHO) lever, a 626 satin chrome finish, and a factory-installed Schlage C keyway cylinder, this fail-secure lock includes REX (Request-to-Exit) functionality. It's ideal for secure, high-traffic commercial environments such as classrooms, stairwells, lobbies, and exterior entrances.

Specifications

• Model: CLN80PDEU RHO 12V 626 RX

• Function: Electrified cylindrical lock, fail‑secure (electrically unlocks with power)

• Finish: 626 Satin Chrome

• Lever Style: Rhodes (RHO)

• Includes: Schlage C keyway cylinder (factory installed)

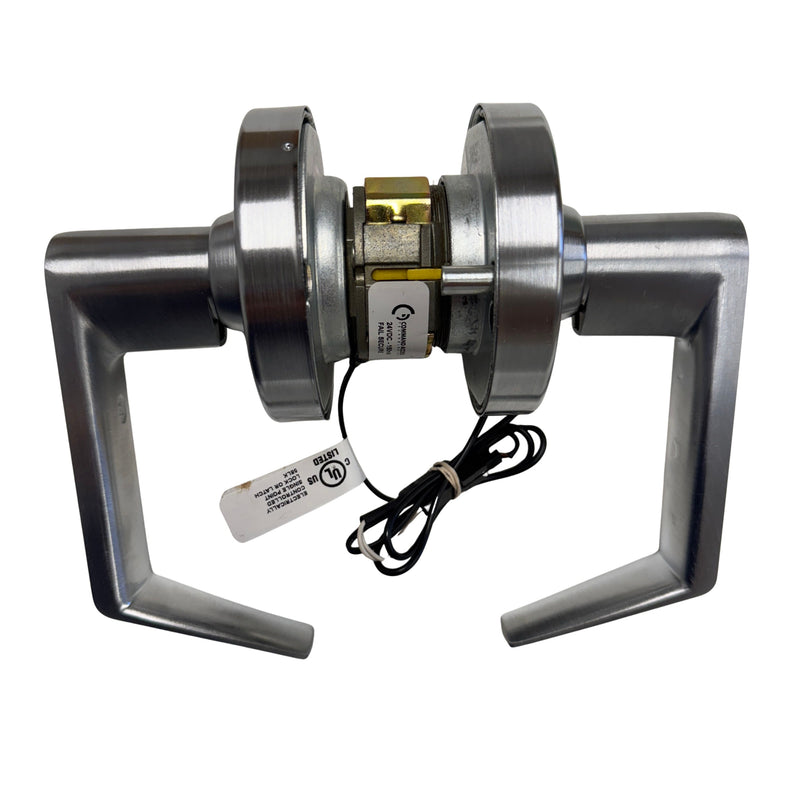

• Switch: Built-in REX switch for Request-to-Exit control and monitoring

• Voltage: 12V AC/DC (±10%)

• Current Draw: Approx. 250 mA

• Power Consumption: Approx. 3 watts

• Bridge Rectifier: AC/DC input compatible

• Compatibility: Fits standard Schlage ND80 door prep

• Warranty: 3-Year limited warranty

Features and Benefits

• True Schlage ND80 Mechanical Lock — electrified by Command Access

• Rhodes lever in satin chrome for elegant, durable styling

• Continuous-duty solenoid enables robust fail‑secure operation

• REX switch for safe egress and system integration

• Plug-in bridge rectifier supports use with AC or DC power sources

• Retains Schlage ND door prep for easy retrofit installations

• Supports optional CRU2 or CRU2i units to extend solenoid lifespan

• Ideal for access control integration in commercial facilities

Additional Information

Built on the established Schlage ND80 chassis and electrified by Command Access, this lock maintains full compatibility with Schlage door prep and trim standards. The integration adds modern electronic access control capabilities while preserving mechanical reliability. Perfect for commercial installations requiring secure, fail-secure access and monitoring features.
