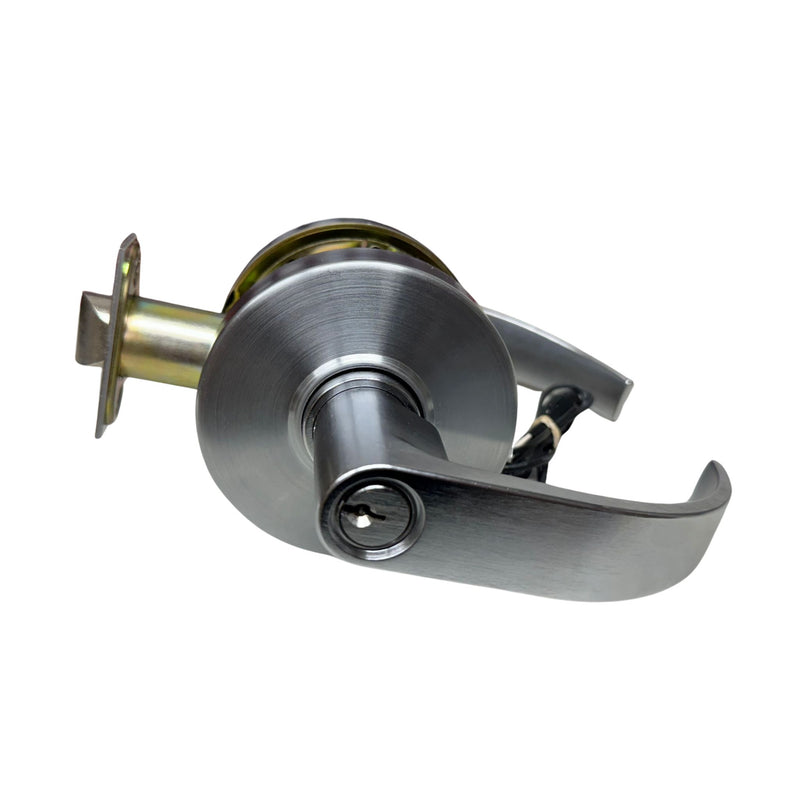

CL180-24V-L17-626 - Electrified Lock - 24V Fail Secure Storeroom Function - Satin Chrome

Product Description

Overview

A cost-effective yet premium Grade 1 electrified cylindrical lock from Command Access, delivering reliable storeroom access control with fail-secure operation and satin chrome finish.

Specifications

• Series: CL180 (Command Access Grade 1 CL1 Series)

• Voltage: 24 VDC

• Function & Operation: Storeroom (Fail Secure) – outside lever electronically unlocked (EU); latchbolt retractable by key from outside or lever from inside; inside lever always free for immediate egress

• Lever: L17 “Sparta” curved clutching lever

• Finish: 626 Satin Chrome

• Keyway: Schlage‑C keyway (“SC”)

• Grade: UL-certified Grade 1 (highest residential/commercial)

• Warranty: No‑hassle 3‑year manufacturer warranty

Features & Benefits

• Premium performance at an economical price: Offers the quality and function of top brands without the premium cost

• Continuous duty design: Solenoid-driven with clutch lever protects against forced rotation—ideal for high-traffic commercial environments

• Versatile access control: Fail-secure storeroom function ensures correct adherence to security policy

• Simple installation and operation: Plug‑in bridge rectifier accepts power without tooling; inside lever provides immediate egress regardless of outside status

• Low power draw: Efficient design helps minimize load on power supplies

Additional Information

• Meets or exceeds applicable ANSI/BHMA Grade 1 standards

• Compatible with standard Schlage‑C keyway; available for SFIC/LFIC formats

• Installation instructions and datasheets available upon request

• Compatible with Command Access power supplies and REX kits
