A7760V 36 84 LHR US32D - Surface Vertical Rod Exit Device - Exit Only - 36x84 - Left Hand Reverse - Satin Stainless

Product Overview

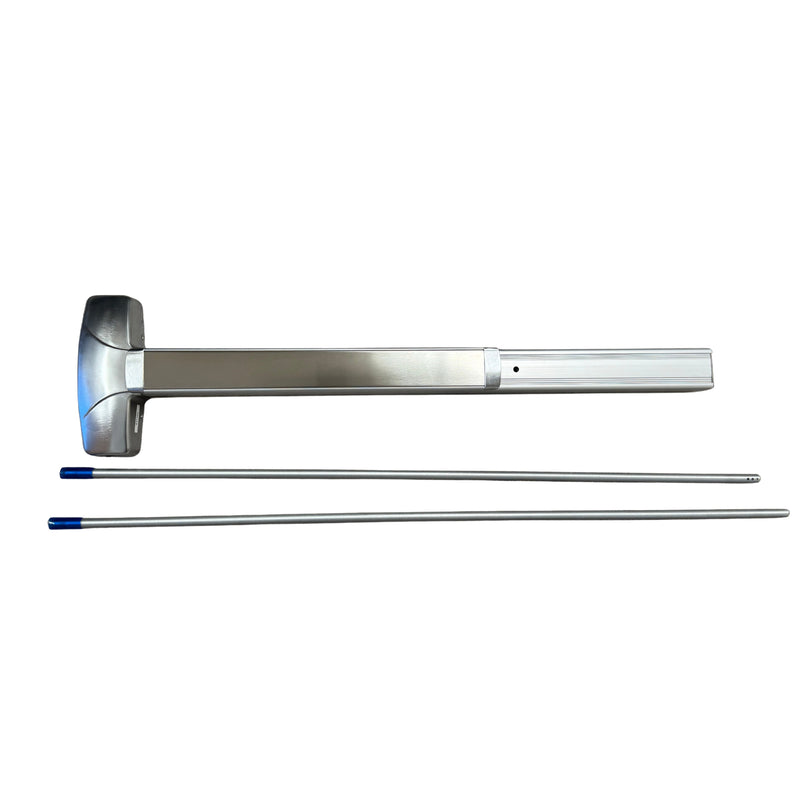

The Cal-Royal A7760V3684 LHR US32D is a Grade 1 surface vertical rod panic exit device for 36" x 84" doors, handed Left Hand Reverse, in Satin Stainless Steel. Exit Only configured — one-action egress from inside with no exterior access hardware. Meeting ANSI A156.3 Grade 1 and UL Listed for panic applications, the 7760V Series is built for institutions, schools, hospitals, and commercial facilities demanding uncompromising life-safety performance. Retrofits Von Duprin 99 and 98 Series door preps directly using the 7700 escutcheon trim. ADA compliant at 5 lb. opening force. Buy American Act compliant. Backed by Cal-Royal's Lifetime Warranty.

Product Features

• ANSI A156.3 Grade 1: Heavy-duty commercial certification for institutional and high-traffic applications
• UL Listed for Panic: UL10C and UBC 7-2-1997 code compliant
• Surface Vertical Rod: Top and bottom rod latching for positive multi-point engagement
• Exit Only: No exterior trim — controlled egress-only applications
• ADA Compliant: 5 lb. maximum opening force
• Von Duprin 99/98 Retrofit: Installs on existing Von Duprin door prep using 7700 escutcheon trim

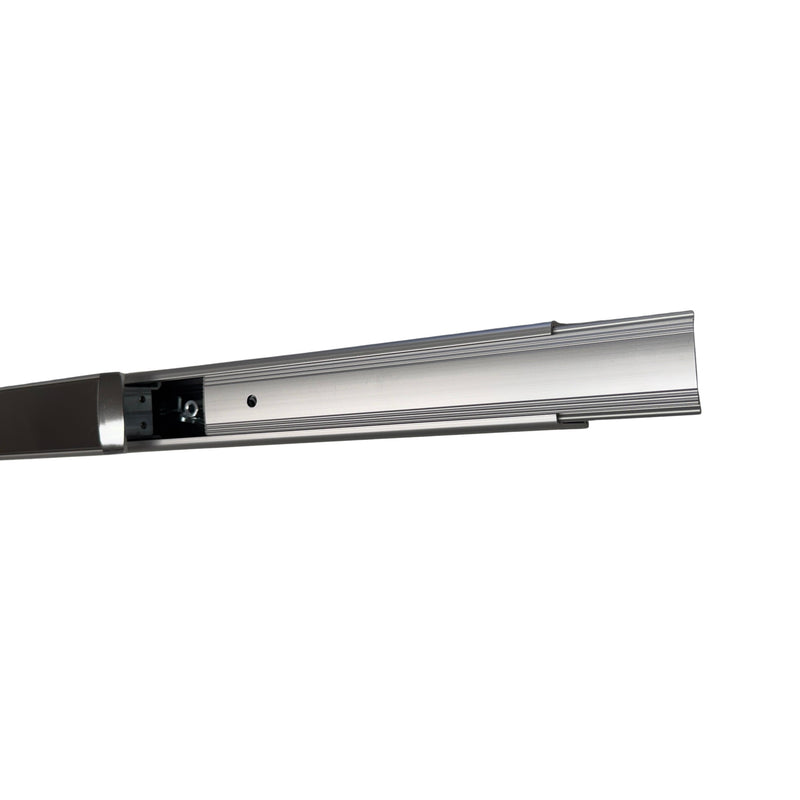

• Heavy-Duty Extruded Aluminum Rail: With stainless steel push pad and brass/stainless end caps
• Thru-Bolted Trim: Maximum security and tamper resistance
• Allen-Type Key Dogging: Standard on non-fire rated devices
• LHR Handing: Left Hand Reverse — specify at time of order
• Finish: US32D Satin Stainless Steel
• Buy American Act Compliant
• Cal-Royal Lifetime Warranty

Product Specifications

• Part Number: A7760V3684 LHR US32D
• Series: 7760V Surface Vertical Rod
• Function: Exit Only
• Handing: LHR - Left Hand Reverse
• Door Size: 30" to 36" wide
• Vertical Rod Length: 84"
• Rail Length: 32" (max cut down: 6")
• Door Thickness: 1-3/4" standard; optional 2-1/4"
• Min. Stile Width: 3-3/4" single; 3-1/2" double door
• Backset: 2-3/4"

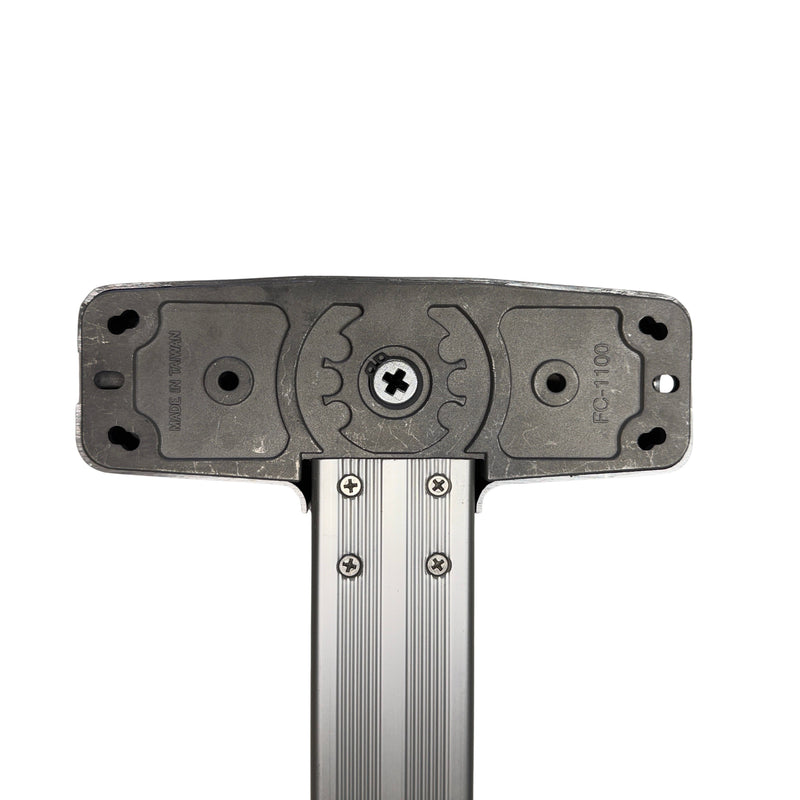

• Chassis: Nonferrous alloy
• Finish: US32D - Satin Stainless Steel
• ANSI Standard: A156.3, Grade 1
• UL Listed: Panic; up to 8' x 8' pairs
• Opening Force: 5 lbs. (ADA Compliant)
• Warranty: Lifetime
