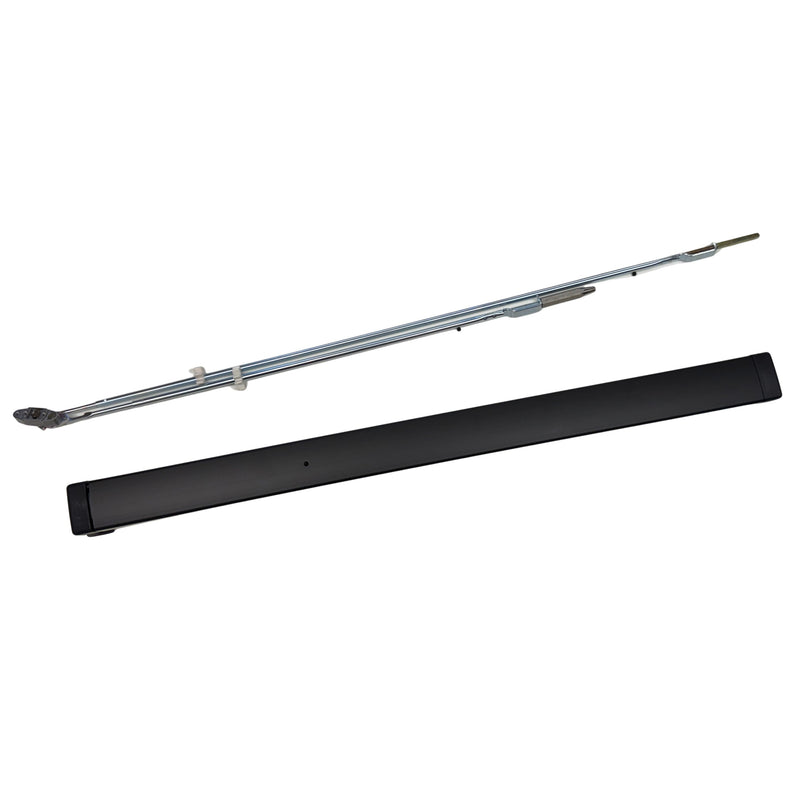

ARLP-8622-24V-48-DU - Electrified CVR Panic Bar - 24V Fail Secure - 48 Inch - Dark Bronze

Product Description

Overview

The Command Access ARLP‑8622‑EU‑24V‑48‑DU is a 48″ electrified concealed vertical rod (CVR) panic bar based on the Adams Rite 8600 series, professionally modified by Command Access Technologies. Designed for demanding access control systems, it features a Dark Bronze finish, fail secure operation, and includes the patented PM300 interface for enhanced performance and reliability.

Specifications

• Product Type: Electrified CVR Panic Bar

• Base Device: Adams Rite 8600 Series Concealed Vertical Rod

• Electrified By: Command Access Technologies

• Model: ARLP‑8622‑EU

• Voltage: 24 VDC

• Length: 48″

• Finish: Dark Bronze (DU)

• Function: Electrified latch retraction (EU – electronically unlocked)

• Operation: Fail Secure – remains locked during power loss

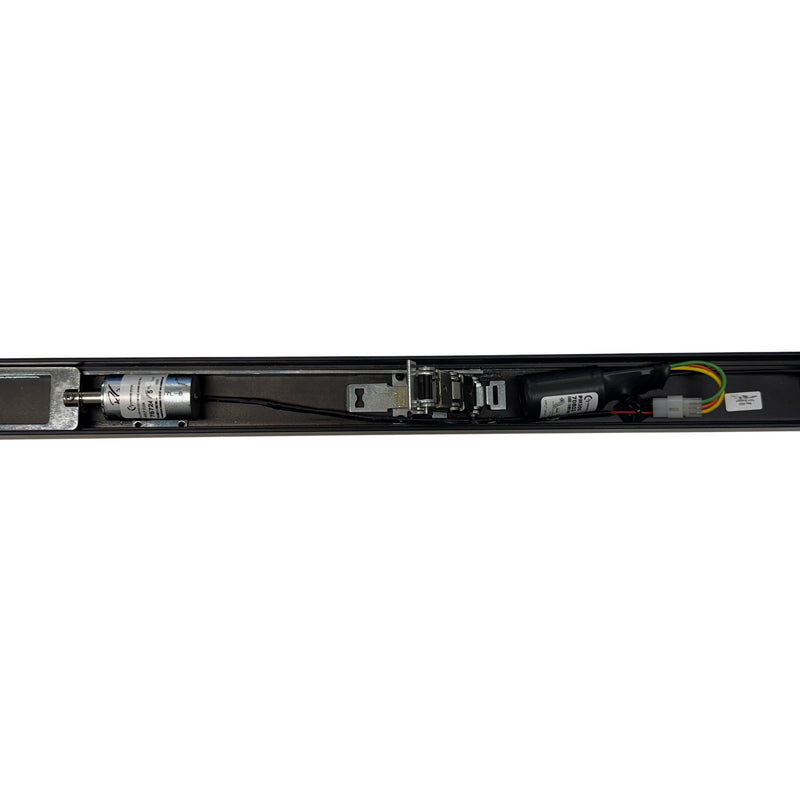

• Technology: PM300 power module for solenoid efficiency

• Design: Low-profile, slim body suitable for narrow stile aluminum doors

• Power Specs: Extended wire runs up to 700′ with 18/2 wire

• Wiring: Includes 6′ power cable with quick-connect for PM300

• Dogging: Factory dogging feature retained

• Warranty: 3-year no-hassle warranty from Command Access

Features & Benefits

• Command Access Modified: Electrified upgrade of the Adams Rite 8600 CVR panic bar

• Patented PM300 Power Module: Increases solenoid efficiency, protects against overheating in “always on” use

• Fail Secure Function: Ensures door remains locked when power is off

• Dark Bronze Finish: Professional anodized coating blends with modern storefront aesthetics

• Continuous-Duty Rated: Built to perform under constant use conditions

• Power-Friendly: Supports long cable runs and centralized power supply locations

• Compact Build: Ideal for narrow stile doors with less than 3″ projection

• Retrofit Compatible: Installs on 8600 and 8400 series Adams Rite devices

Additional Information

• ANSI/BHMA Grade 1 equivalent performance

• Designed for aluminum storefronts and commercial doors requiring CVR access control

• Installation documentation and wiring diagrams provided by Command Access

• Compatible with standard 24VDC access systems
