Command Access ARLP-8622 CVR Panic Bar - 24V Fail Secure - 42 Inch - Dark Bronze (DU)

Product Description

Overview

The Command Access ARLP‑8622‑EU‑24V‑42‑DU is a 42″ electrified concealed vertical rod (CVR) panic bar based on the Adams Rite 8600 series and enhanced by Command Access Technologies. This model combines fail secure latch retraction with a durable Dark Bronze finish and integrated PM300 power module, offering a dependable and retrofit-friendly solution for access-controlled storefronts and commercial facilities.

Specifications

• Product Type: Electrified CVR Panic Bar

• Base Device: Adams Rite 8600 Series CVR Rim Exit

• Electrified By: Command Access Technologies

• Model: ARLP‑8622‑EU

• Voltage: 24 VDC

• Length: 42″

• Finish: Dark Bronze (DU)

• Function: Electrified latch retraction (EU – electronically unlocked)

• Operation: Fail Secure – remains locked when unpowered

• Technology: Includes patented PM300 power interface module

• Design: Low-profile, narrow-stile compatible; projects less than 3″

• Power Specs: Supports long wire runs up to 700′ using 18/2 wire

• Wiring: Equipped with 6′ power cable and quick-connect for PM300

• Dogging: Factory mechanical dogging retained

• Warranty: 3-year no-hassle Command Access warranty

Features & Benefits

• Electrified by Command Access: Modified from the trusted Adams Rite 8600 series CVR bar

• Fail Secure Functionality: Secure in power-off states—ideal for high-security zones

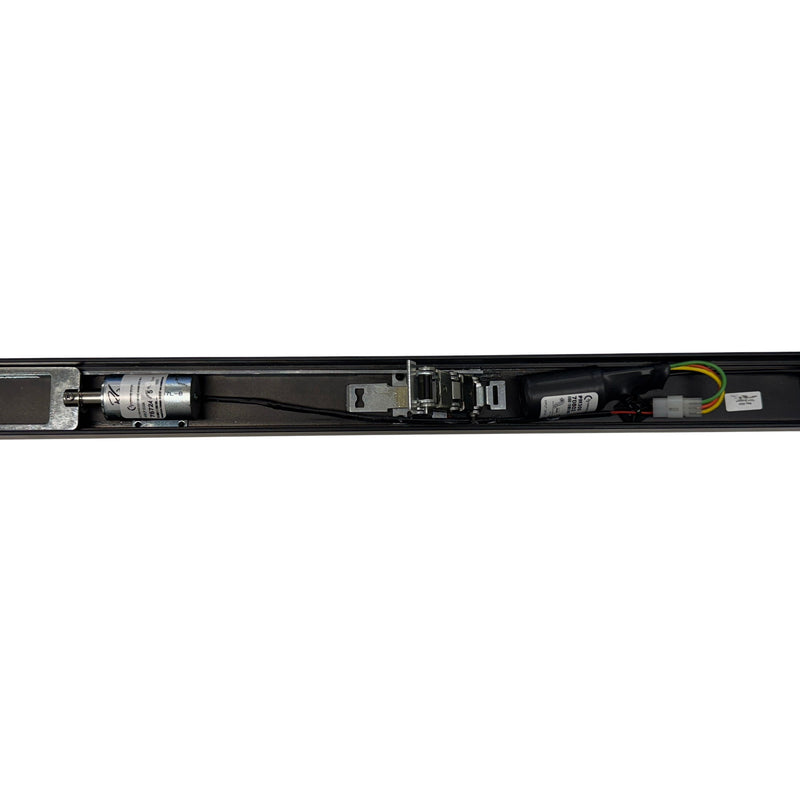

• PM300 Power Module: Optimizes solenoid efficiency and prevents overheating

• Dark Bronze Finish: Durable anodized coating fits commercial storefront designs

• Built for Durability: Rated for continuous-duty applications

• Field Friendly: Retrofit-ready for existing 8400/8600 series installations

• Narrow Stile Compatible: Perfect for aluminum doors with minimal face width

• Efficient Wiring: Low power draw supports remote power supply setups

Additional Information

• ANSI/BHMA Grade 1 equivalent performance

• Designed for high-traffic storefront and commercial access points

• Detailed wiring diagrams and installation resources available from Command Access
