Command Access ARLP-8611 CVR Panic Bar - 24V Fail Secure - 42 Inch - Aluminum (AL)

Product Description

Overview

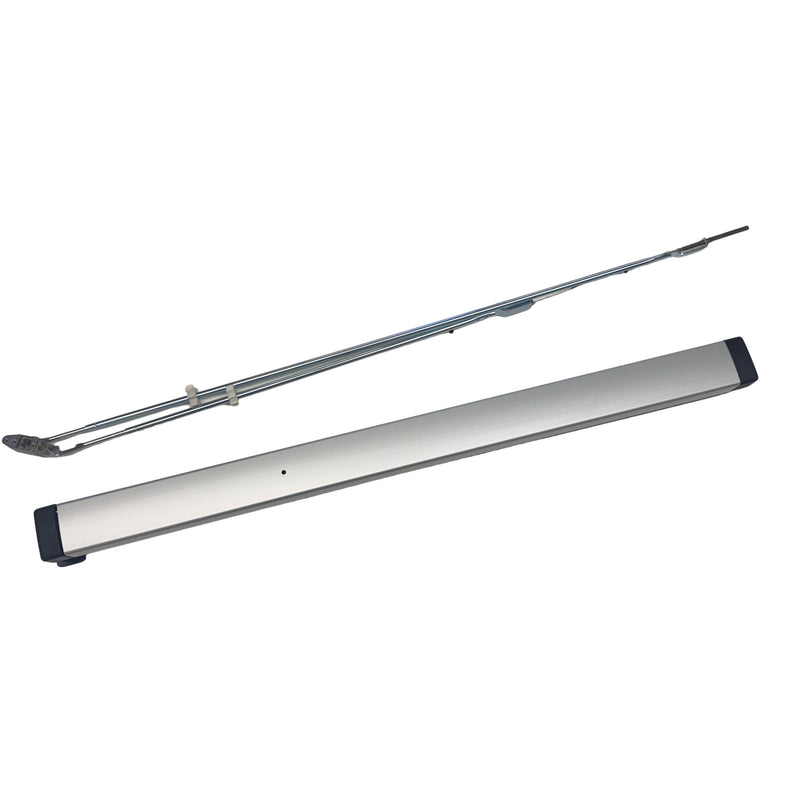

The Command Access ARLP‑8611‑EU‑24V‑42‑AL is a 42″ electrified concealed vertical rod (CVR) panic bar modified by Command Access Technologies from the original Adams Rite 8600 series. This model offers fail secure latch retraction, a clean Aluminum finish, and includes the patented PM300 power module for reliable access control on aluminum storefront and commercial doors.

Specifications

• Product Type: Electrified CVR Panic Bar

• Base Device: Adams Rite 8600 Series Concealed Vertical Rod Exit Device

• Electrified By: Command Access Technologies

• Model: ARLP‑8611‑EU

• Voltage: 24 VDC

• Length: 42″

• Finish: Aluminum (AL)

• Function: Electrified latch retraction (EU – electronically unlocked)

• Operation: Fail Secure – remains locked during power outage

• Technology: Includes patented PM300 interface module

• Design: Low-profile construction projects less than 3″; fits narrow stile aluminum doors

• Wiring: 6′ quick-connect power cable for PM300 module

• Power Range: Supports up to 700′ wire runs with 18/2 cable

• Dogging: Retains original mechanical dogging feature

• Warranty: Backed by Command Access 3-year no-hassle warranty

Features & Benefits

• Electrified by Command Access: Built from the Adams Rite 8600 CVR device, modified for electric latch retraction

• Fail Secure Operation: Door stays locked during power loss—ideal for secure facilities

• Aluminum Finish: Sleek and corrosion-resistant anodized coating matches commercial hardware

• PM300 Module: Maximizes solenoid performance and prevents overheating in continuous use

• Continuous-Duty Rated: Engineered for high-demand access control environments

• Efficient Wiring Design: Supports centralized power and long wire distances

• Retrofit-Ready: Compatible with existing 8400/8600 Adams Rite installations

• Slim Profile: Perfect for narrow stile aluminum storefront doors

Additional Information

• ANSI/BHMA Grade 1 equivalent performance

• Designed for use in high-traffic commercial doors and storefronts

• Accessory support and wiring documentation provided by Command Access

• Works with standard 24V access control systems
