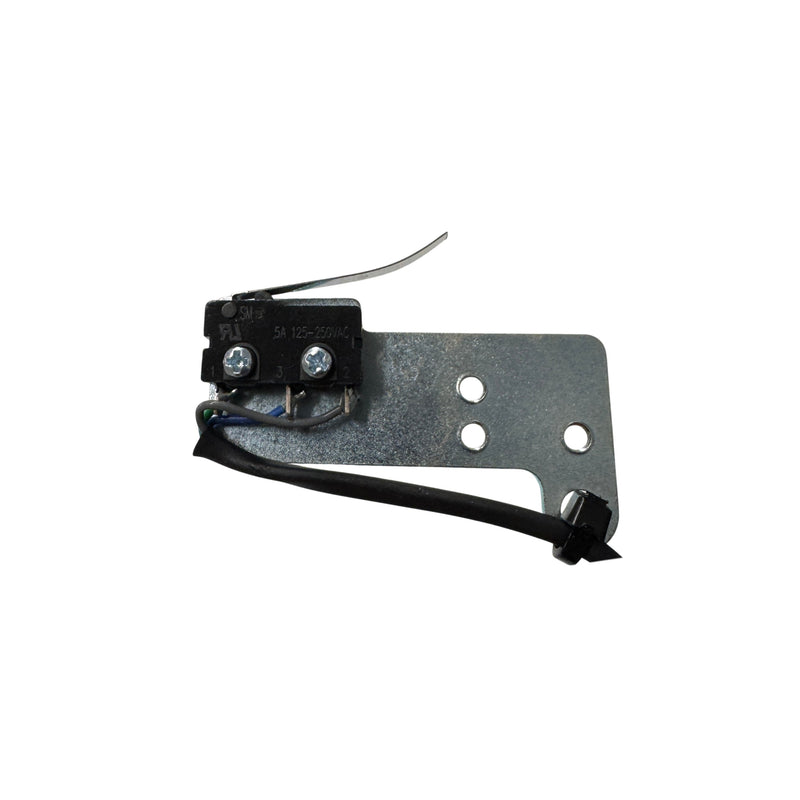

VDREXKIT-ED Command Access Request-to-Exit Switch Kit

The VDREXKIT-ED by Command Access is a field-installable Request-to-Exit (REX) Switch Kit designed specifically for use with Von Duprin 33/35 and 98/99 Series Exit Devices. This dependable SPDT switch kit enhances access control systems by signaling the control panel when a secured door is opened from the inside.

Perfect for commercial buildings, offices, healthcare facilities, schools, and other controlled access environments, the VDREXKIT-ED improves door monitoring, security compliance, and exit event reporting.

Key Features

• Field-Installable Design: Easily retrofit existing Von Duprin exit devices without complicated modifications or special tools.
• Wide Compatibility: Designed for Von Duprin 33/35 and 98/99 Series Exit Devices.
• SPDT Switch Configuration: Flexible wiring with Common (C), Normally Open (NO), and Normally Closed (NC) contacts.
• Reliable REX Monitoring: Sends immediate request-to-exit signals to access control systems for enhanced security tracking.
• Commercial Grade Construction: Built for long-lasting performance in demanding commercial door applications.
• Easy Installation: Includes mounting screws, drill bit, and REX label for fast field installation.

Specifications

• Part Number: VDREXKIT-ED
• Manufacturer: Command Access
• Product Type: Request-to-Exit Switch Kit
• Switch Type: SPDT (Single Pole Double Throw)
• Electrical Rating: 0.5A @ 24VAC/DC
• Compatible Devices: Von Duprin 33/35 & 98/99 Series Exit Devices

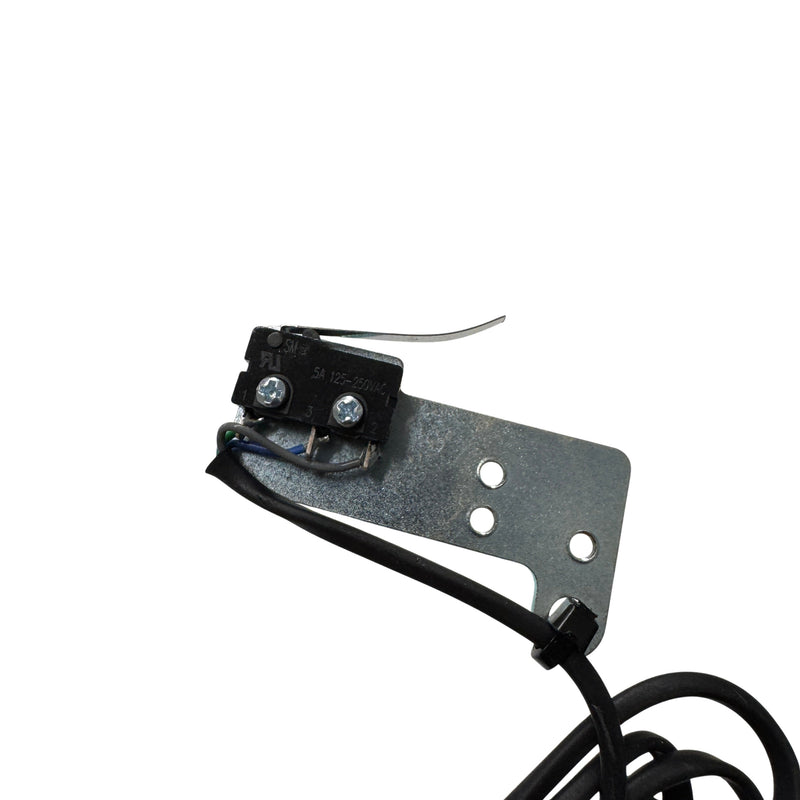

• Wiring Configuration:
  • Green/Black – Common
  • Blue/Black – Normally Open (NO)
  • Grey/Black – Normally Closed (NC)

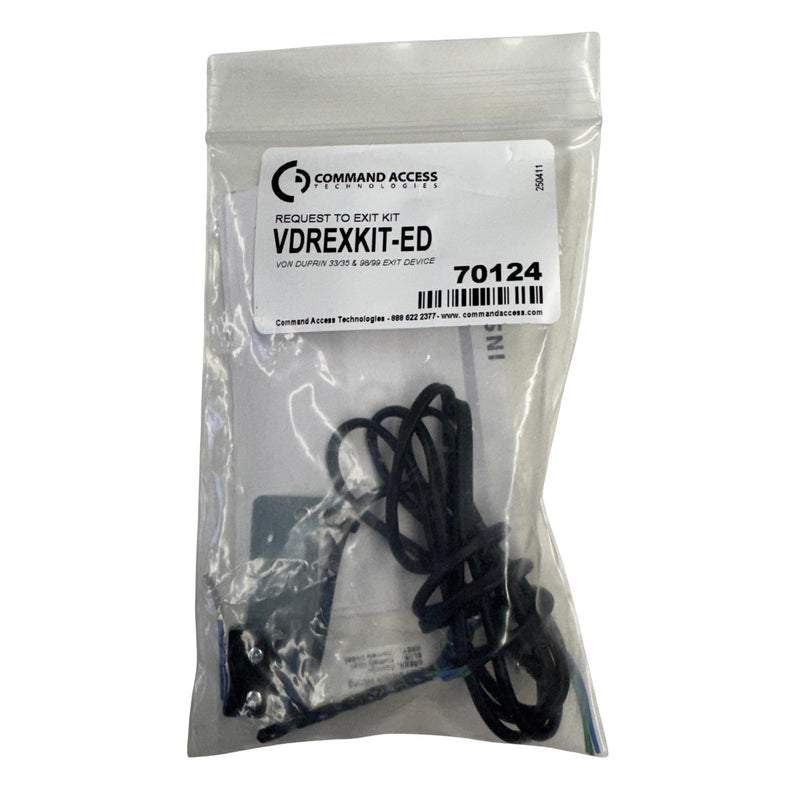

• Included Components: REX Label, REX Switch, (2) Phillips Screws, 9/64 Drill Bit
