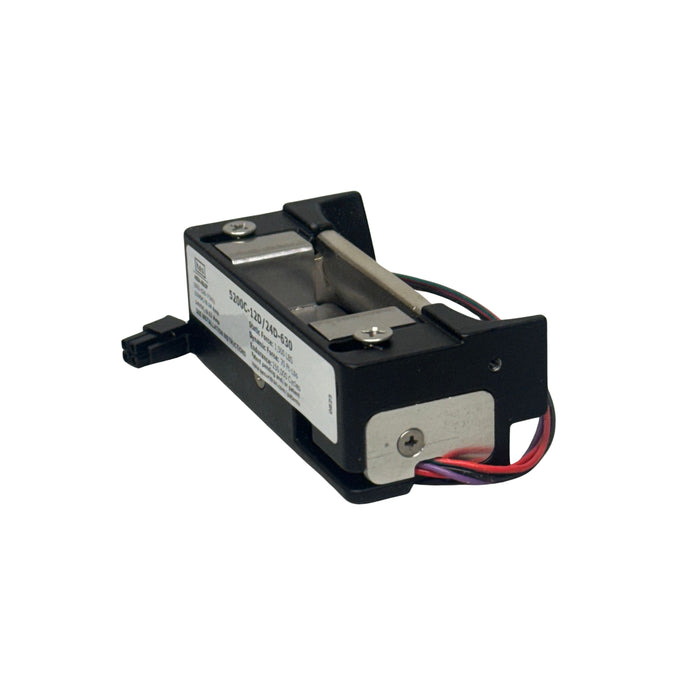

HES 5200C-630 - 12/24V Electric Strike Complete Pac Satin Stainless Steel

Overview:
The HES 5200C-630 is a 12/24V dual voltage Grade 1 electric strike featuring horizontal adjustability and a satin stainless steel finish, packaged for easy installation.

Specifications:

• Voltage: Dual voltage 12/24V DC/AC

• Application: Metal & wood frames

• Fail Mode: Field-selectable fail secure or fail safe

• Strength Ratings: 1,500 lbs static, 70 ft-lbs dynamic

• Durability: 500,000+ cycles (ANSI/BHMA Grade 1)

• Latchbolt Compatibility: Accepts 5/8″ to 3/4″ latchbolt (up to 3/4″ with 1/8″ door gap)

• Strike Body Depth: 1-1/16″

• Handing: Non-handed

• Connector: Plug-in style

• Power Draw:

  • 0.24 A @ 12 VDC/VAC

  • 0.12 A @ 24 VDC/VAC

• Includes:

  • 501 & 501A faceplates

  • Plug-in connector

  • Trim enhancer

Features and Benefits:

• Installer-Friendly Design: Horizontal in-frame adjustability allows post-installation alignment—ideal for retrofit or tight-tolerance applications.

• Complete Pac Convenience: Comes with faceplates and mounting hardware for streamlined setup.

• Versatile Power Options: Operates on 12 or 24 volt AC/DC input; easily switches between fail-safe and fail-secure modes.

• Built to Perform: Non-handed, tamper-resistant, and designed for high-traffic, high-security environments.

• Assured Longevity: Rated to ANSI/BHMA Grade 1, backed by a 5-year limited warranty.

Additional Information:
Optional latchbolt monitoring (LBM) and latchbolt strike monitoring (LBSM) available. Also compatible with Smart Pac for increased power protection and warranty extension up to 10 years.
