Why Choose the HES 9400 Electric Strike?

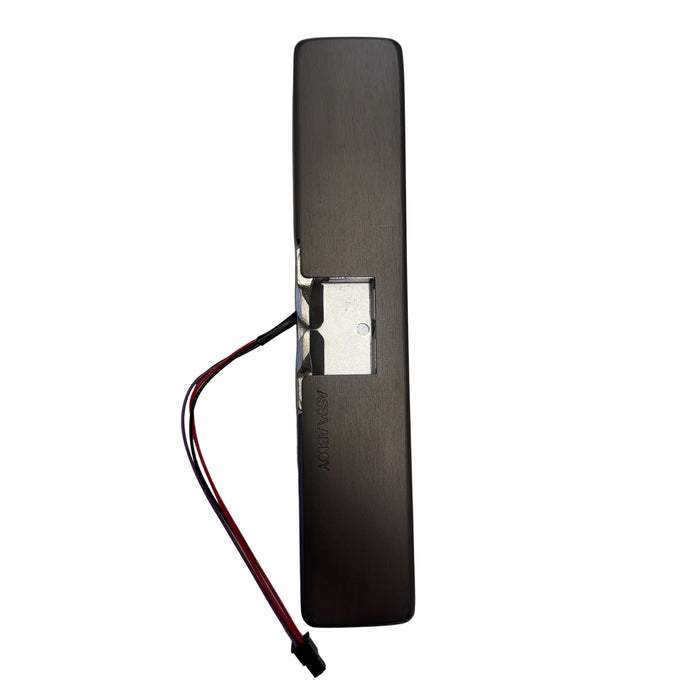

The HES 9400 is built with all components enclosed in a robust 5/8" stainless steel housing, providing tamper-resistant protection and a sleek, modern appearance. No frame cutting is required—simply align it with the exit latchbolt for easy installation.

Key Features:

• Surface-mounted for easy installation on metal and wood frames
• Stainless steel construction for long-lasting durability
• 1,500 lbs. static strength, 70 ft-lbs. dynamic strength
• Exceeds Grade 1 standards for strength and performance
• Field selectable for fail secure/fail safe operation
• Dual voltage operation (12 or 24 VDC)
• 500,000 cycle endurance for reliable performance

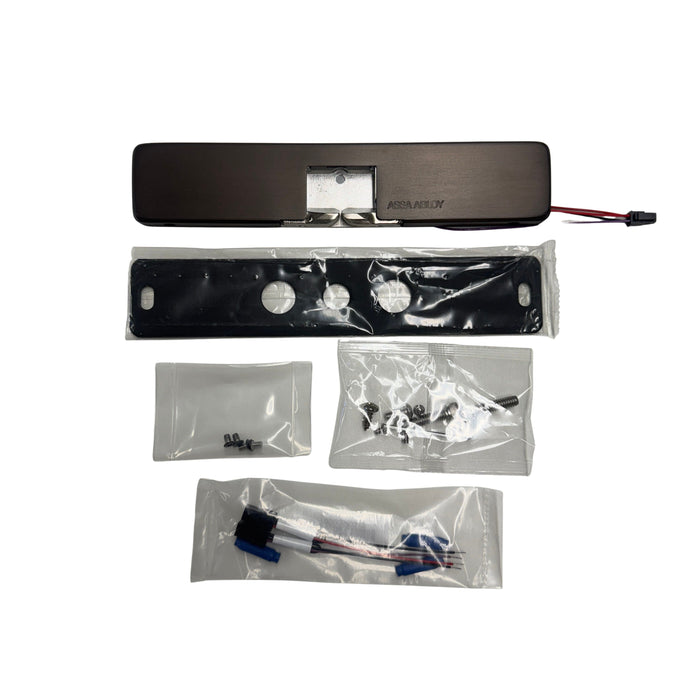

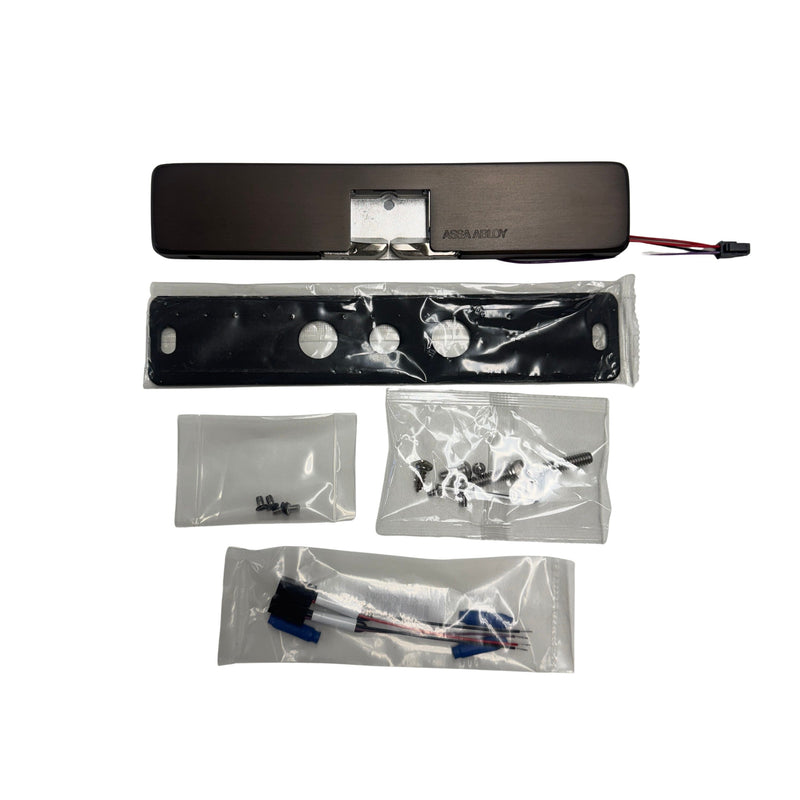

• Includes 1/8" and 1/16" spacer plates for flexible door gap adjustments
• Internally mounted solenoid for enhanced security
• Non-handed design and horizontal adjustment
• Sleek cover to conceal mounting screws for an elegant look
• Five-year limited warranty

Optional Features:

• LBM - Latchbolt monitor for security and door monitoring
• LBSM - Latchbolt strike monitor for enhanced functionality

Specifications

Frame Application:

• Metal Frames
• Wood Frames

Electrical:

• .45 Amps at 12VDC continuous duty
• .25 Amps at 24VDC continuous duty

Finishes:

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 613E - Dark oxidized satin bronze
• 629 - Bright stainless steel
