Command Access Technologies MLRK1‑AR – Motorized Latch Retraction Kit (Adams Rite 8000 Series, Field Installable, 22‑28 VDC)

Product Description

Overview:

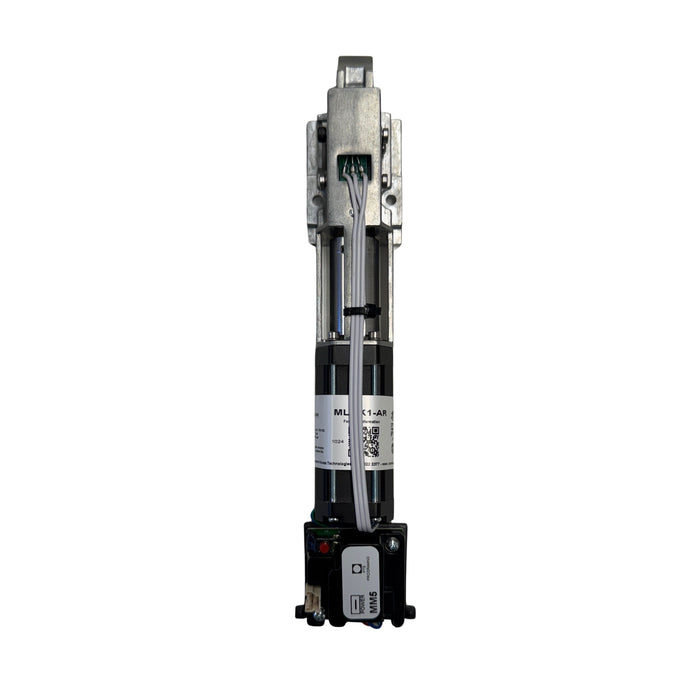

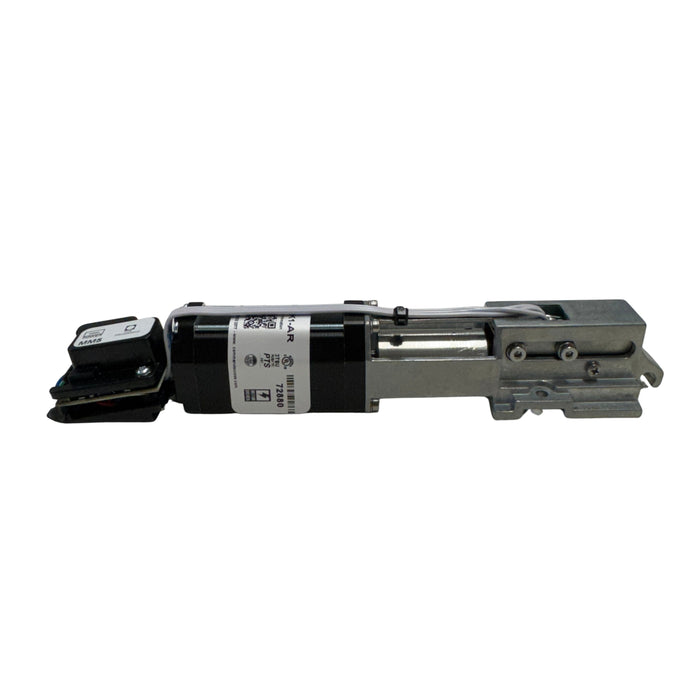

The MLRK1‑AR (ARLP‑UL‑M‑KIT) is a durable, field-installable solution for converting Adams Rite 8000 Series exit devices into electrified latch retraction units. Built with a custom ball screw drive and CAT-designed stepper motor, this compact retrofit kit delivers reliable force with smooth operation, maintaining full compatibility with Adams Rite 82, 84, 86, and 88 Series models.

Specifications:

• Compatibility: Adams Rite 8000 Series (82, 84, 86, 88)

• Voltage Range: 22–28 VDC

• System Protection: Auto shutdown above 28 VDC

• Current Draw:

  • Standard Mode: Peak 1.3 A, Hold 170 mA

  • High Torque Mode: Peak 2 A, Hold 250 mA

• Push‑to‑Set (PTS) Adjustment: Approx. ¼″ post-installation

• Wire Run Capability: Up to 300′ with 18 ga wire

• Optional Feature: Integrated Request‑to‑Exit (REX) switch

Product Details:

• Weight: 2 lb

Device Cutdown Guidelines:

• 36″ Door: Cutdown 1″

• 42″ Door: Cutdown 7″

• 48″ Door: Cutdown 5.5″

Features & Benefits:

• Compact design fits all 8000 Series models without clearance issues

• Push‑to‑Set simplifies post-install calibration

• Only hole required is for the wire raceway

• Reliable drive with custom ball screw and stepper motor assembly

• Optional REX for exit monitoring

• Maintains UL listing of the original device

• Includes a 3‑year no‑hassle manufacturer warranty
