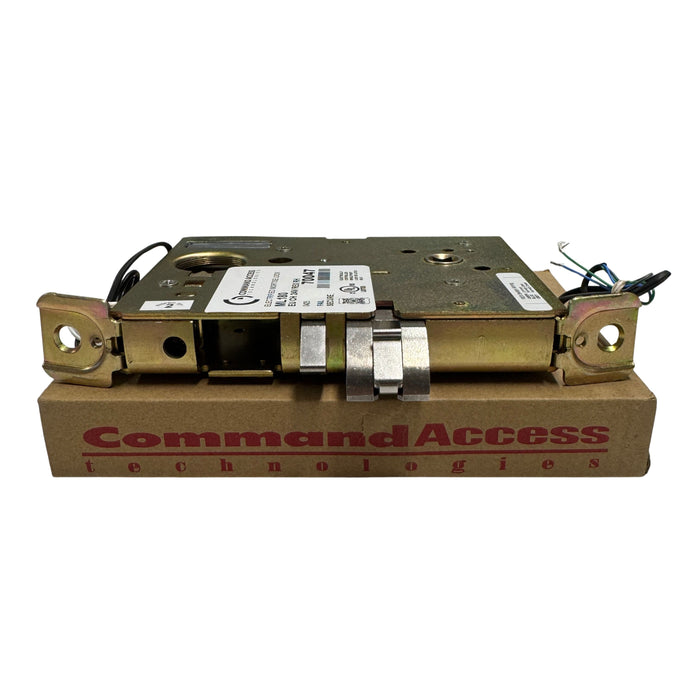

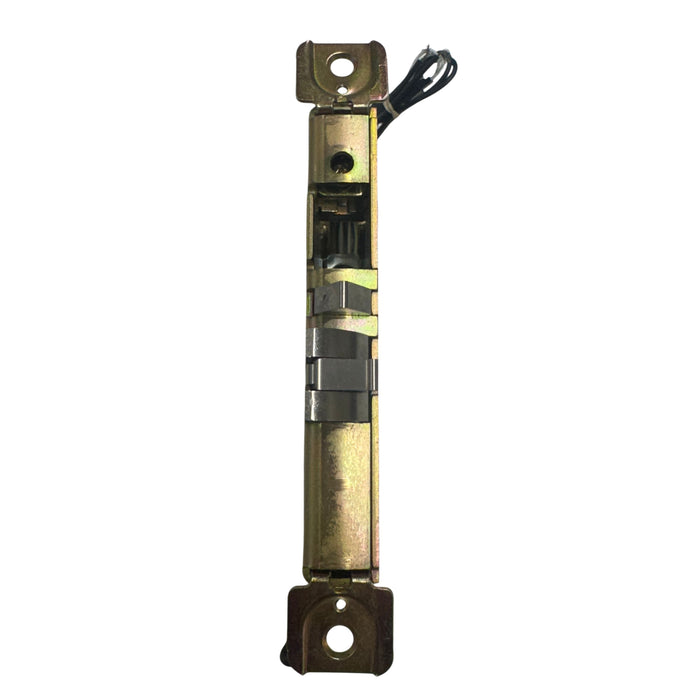

Command Access ML180‑EU‑24V‑REX – Electrified Mortise Lock, Schlage Retrofit, Storeroom, Fail Secure, 24V with REX

Product Description

Overview

The Command Access ML180‑EU‑24V‑REX is a 24V electrified mortise lock from the ML1 series, designed as a retrofit for Schlage L-Series hardware. Featuring storeroom function, fail secure operation, and integrated Request to Exit (REX), this lock delivers Grade 1 security and access control performance in high-use commercial environments.

Specifications

• Product Type: Electrified Mortise Lock (Complete or Chassis Only)

• Series: ML1 – Schlage L-Series Retrofit

• Electrified By: Command Access Technologies

• Model: ML180‑EU

• Voltage: 24 VDC

• Function: Storeroom (EU – electronically unlocked)

• Operation: Fail Secure – outside lever remains locked when power is off

• REX Function: Integrated Request to Exit

• Power Requirements:

  • Amperage: 350 mA

  • Solenoid resistance: 69 Ω

  • Power consumption: 8 watts

• Power Compatibility: Operates on 24VAC/DC (±10%) via bridge rectifier

• Handing: Field reversible (EL/EU configurable)

• Solenoid: Continuous duty rated

• Warranty: Command Access 3-year no-hassle warranty

Features & Benefits

• Schlage Retrofit: Designed to replace Schlage L-Series lock bodies

• Fail Secure Configuration: Ensures door remains secure during power loss

• Storeroom Functionality:

  • Outside lever electronically unlocked

  • Latchbolt retracts via key from outside or by lever from inside

  • Inside lever always allows free egress

• Integrated REX: Supports door monitoring and egress signaling

• Durable and Efficient: Grade 1 construction and low power draw

• Flexible Installation: Field reversible handing and function (EL/EU)

Common Applications

• Office and classroom doors

• Building entrances and corridors

• Server rooms and secure areas

• Access control retrofits using Schlage hardware
