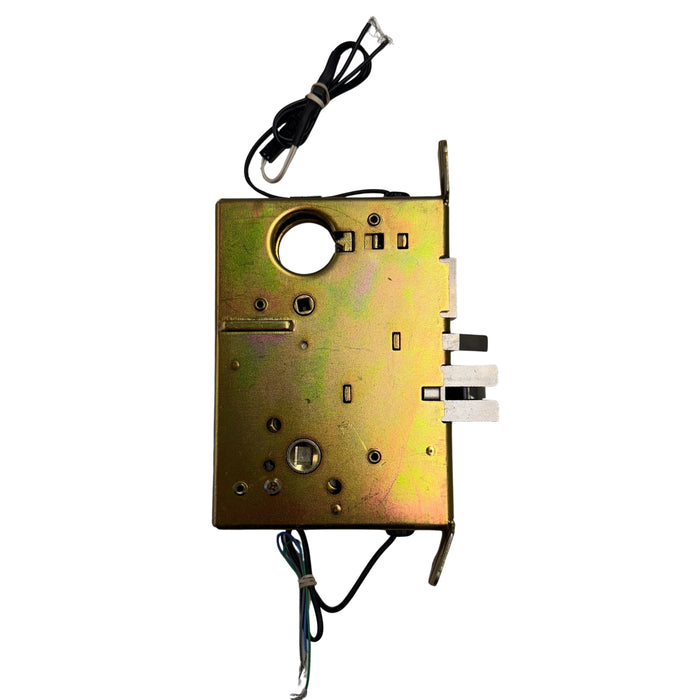

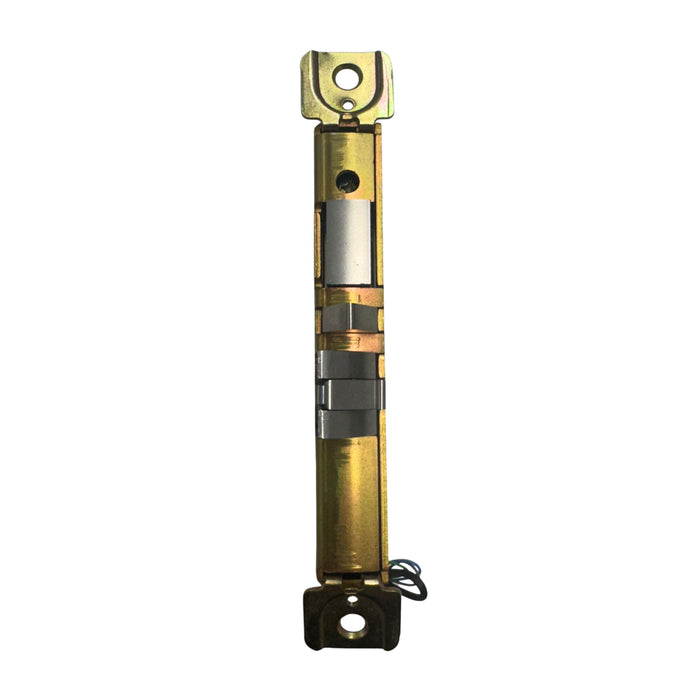

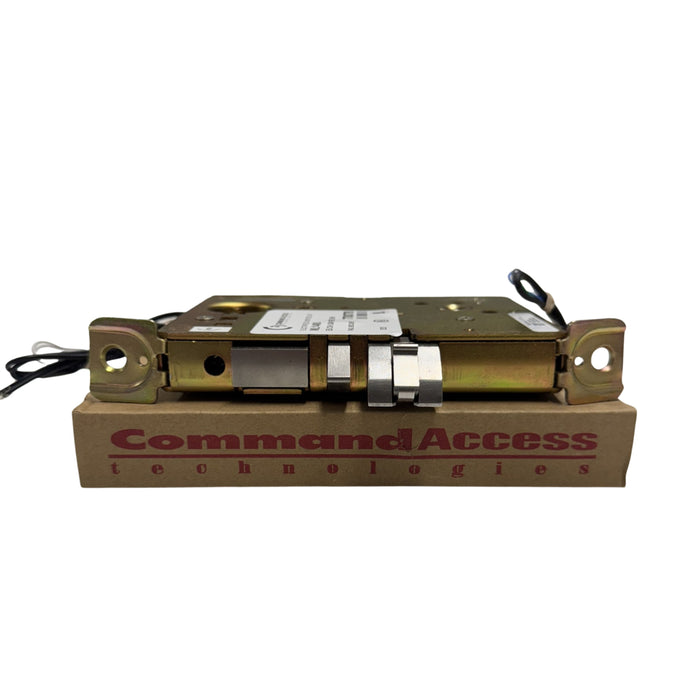

Command Access ML1480‑EU‑CH‑24V‑REX – Electrified Mortise Lock, Entry with Deadbolt, Schlage Retrofit, Fail Secure, 24V with REX

Product Description

Overview

The Command Access ML1480‑EU‑CH‑24V‑REX is a 24V electrified mortise lock from the ML1 series, designed to retrofit Schlage L-Series locks. Featuring an entry function with integrated deadbolt, fail secure operation, and built-in Request to Exit (REX), it offers a Grade 1 solution for high-security, access-controlled environments requiring both latch and deadbolt control.

Specifications

• Product Type: Electrified Mortise Lock Chassis

• Series: ML1 – Schlage L-Series Retrofit

• Electrified By: Command Access Technologies

• Model: ML1480‑EU‑CH

• Voltage: 24 VDC

• Function: Entry with Deadbolt (EU – electronically unlocked)

• Operation: Fail Secure – outside lever remains locked when unpowered

• Deadbolt Function:

  • Power retracts both latchbolt and deadbolt

  • Manual key override from outside

  • Inside lever always allows egress

• REX Function: Integrated Request to Exit

• Power Requirements:

  • Amperage: 350 mA

  • Solenoid resistance: 69 Ω

  • Power consumption: 8 watts

• Power Compatibility: Accepts 24VAC/DC (±10%)

• Handing: Field reversible (EL/EU configurable)

• Solenoid: Continuous duty rated

• Warranty: Backed by a 3-year no-hassle Command Access warranty

Features & Benefits

• Electrified by Command Access: Built for retrofit to Schlage L-Series trim

• Entry with Deadbolt Functionality:

  • Outside lever electronically unlocked (EU)

  • Latchbolt and deadbolt retract by key or inside lever

  • Power allows outside lever to retract both latch and deadbolt

  • Egress always available from inside

• Fail Secure Safety: Remains locked without power

• REX Support: Integrated Request to Exit for monitoring and access compliance

• Grade 1 Strength: Ideal for commercial and institutional use

• Retrofit Simplicity: Compatible with existing Schlage hardware

• Power Efficient: Low amperage, AC/DC ready

• Field Adjustable: EL/EU switching and handing reversible onsite

Common Applications

• Exterior and perimeter doors

• Executive offices

• Commercial entry points

• Classrooms and meeting rooms with added security

• Retrofit upgrades requiring deadbolt and REX
