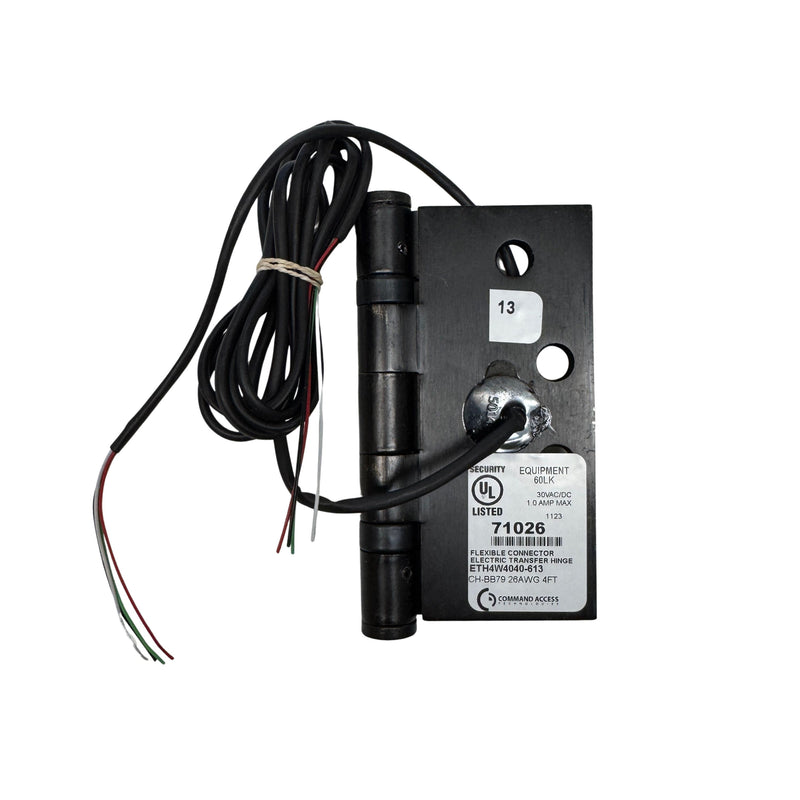

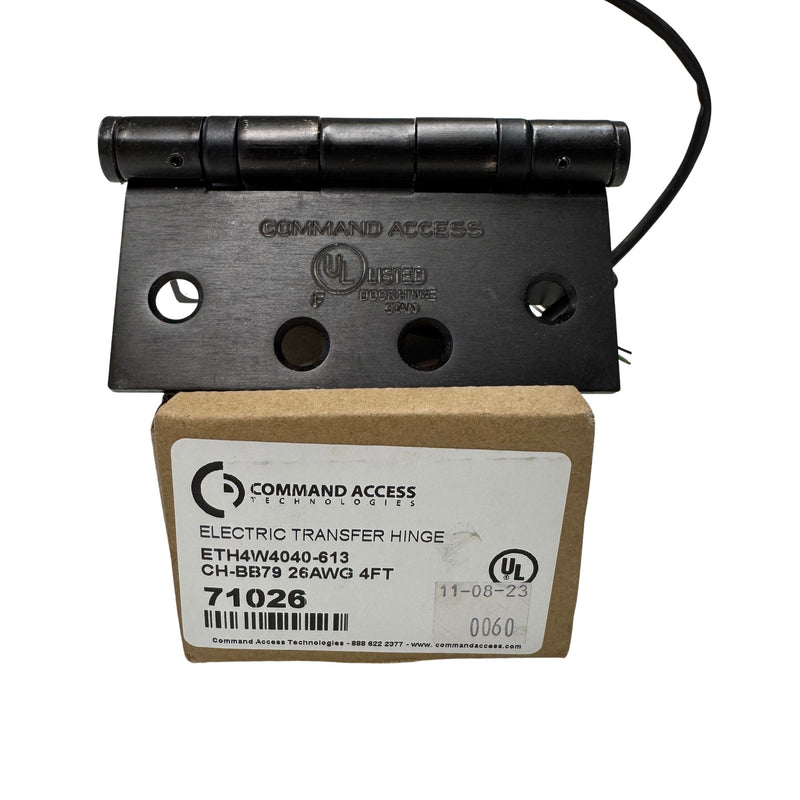

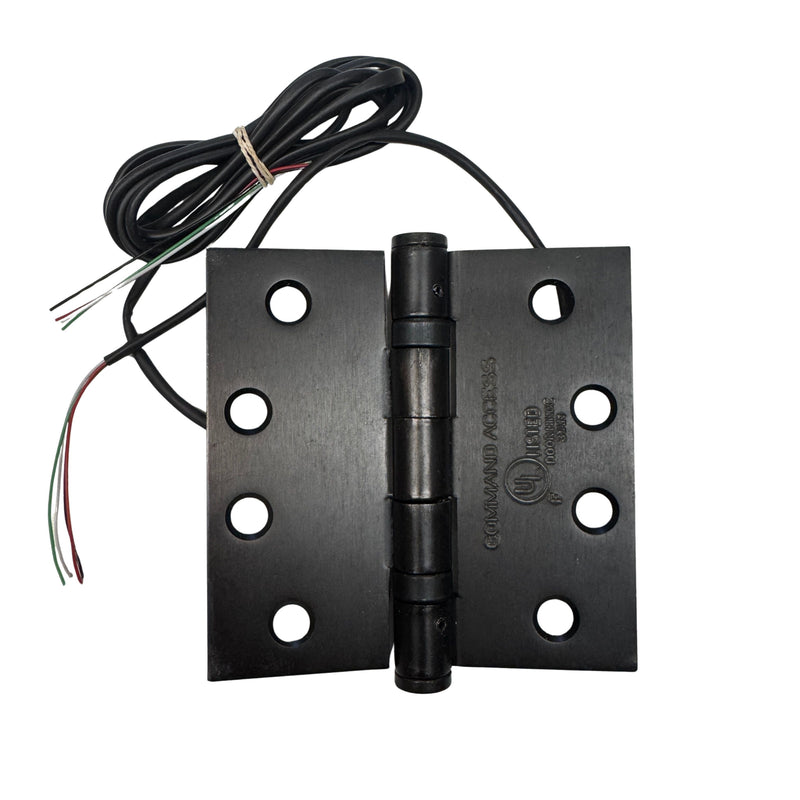

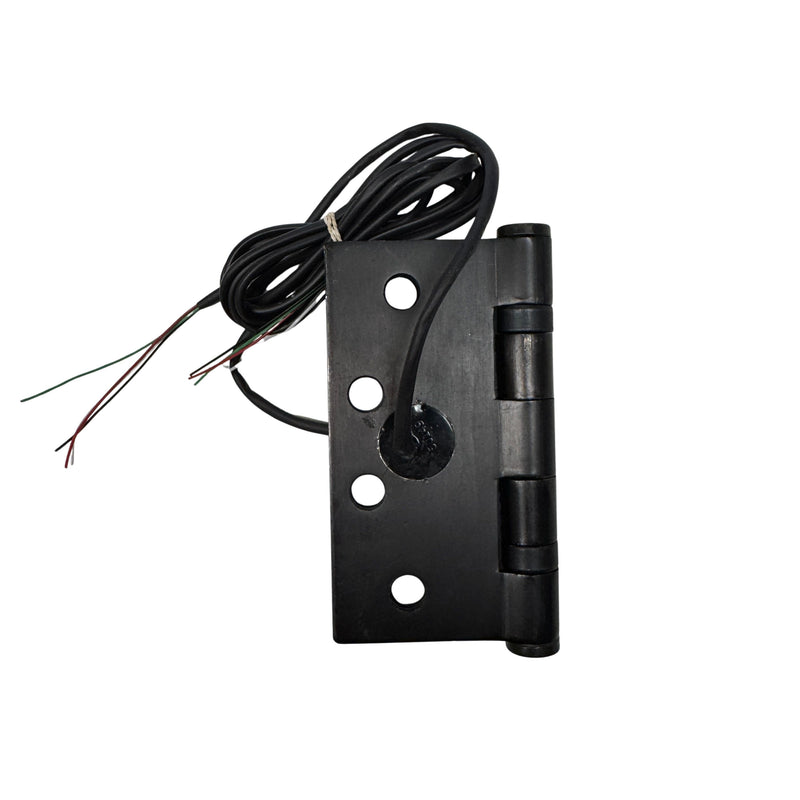

Command Access ETH4W5K4040 613 CH-BB79 – 4-Wire Electric Hinge, 5 Knuckle, 4″ x 4″, Oil Rubbed Bronze, Standard Weight

Product Description

Overview:
The Command Access ETH4W5K4040 613 CH-BB79 Energy Transfer Hinge is a 4-wire, 5-knuckle, standard weight hinge built to discreetly transfer 26-gauge low-voltage power from the door frame to locking hardware. Its concealed wiring design ensures a tamper-resistant, professional installation ideal for high-use commercial environments.

Specifications:

• SKU: ETH4W5K4040 613 CH-BB79

• Size: 4″ x 4″

• Finish: Oil Rubbed Bronze (613)

• Weight: Standard weight hinge

• Design: 5-knuckle, full mortise

• Wire: 4-wire, 26-gauge conductors for low-voltage transfer

• Application: Interior or exterior commercial doors

• Hinge Type: Energy Transfer Hinge (ETH)

Typical Uses:

• Electric mortise & cylindrical locks

• Electric strikes (especially for paired doors)

• Electrified exit trims & latch pullback devices

• Door-mounted card readers

• Low-voltage door lighting

Features & Benefits:

• Concealed wiring for enhanced security and clean aesthetics

• Provides consistent low-voltage power transfer without restricting door movement

• Works with a variety of electrified locking and access control devices

• Oil Rubbed Bronze finish offers a classic, durable appearance

• Designed for long-lasting performance in demanding applications
