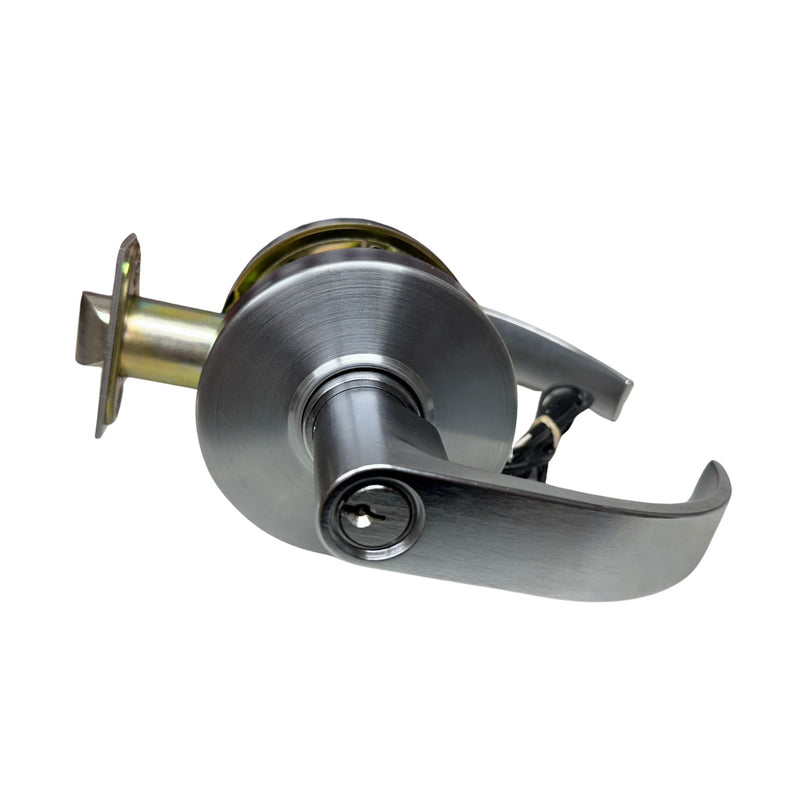

Command Access CL180-24V-EU-L17-626-SC-REX – Grade 1 Electrified Cylindrical Lock, Sparta Lever, Satin Chrome, SC Keyway, Fail Secure, with REX

Product Description

Overview:
The Command Access CL180-24V-EU-L17-626-SC-REX is a Grade 1 electrified cylindrical lock designed for commercial environments where performance, security, and monitoring capabilities are essential. Featuring the L17 Sparta lever in Satin Chrome with an SC keyway and integrated Request-to-Exit (REX) switch, this lock offers reliable functionality at a cost-effective price point. In fail secure (EU) mode, the outside lever remains locked until power is applied, while the inside lever is always free for egress.

Specifications:

• Series: CL180

• Function: Electrified cylindrical lock, fail secure (EU)

• Operation:

  • Outside lever unlocked electronically

  • Latchbolt retracted by key outside or lever inside

  • Switched power allows outside lever to retract latchbolt

  • Inside lever always free for egress

• Voltage: 24 VDC

• Lever Style: L17 Sparta lever

• Finish: Satin Chrome (626)

• Keyway: SC (Schlage C)

• Grade: ANSI Grade 1

• Additional Feature: Integrated REX (Request-to-Exit) switch

• Warranty: 3-year no-hassle manufacturer warranty

Features & Benefits:

• Built to meet or exceed ANSI Grade 1 strength and performance standards

• Fail secure function maintains security during power loss

• Integrated REX enables access control system monitoring

• Satin Chrome finish for durability and modern styling

• Smooth, quiet operation for high-traffic locations

• Cost-effective alternative to brand-name electrified locks without sacrificing quality
