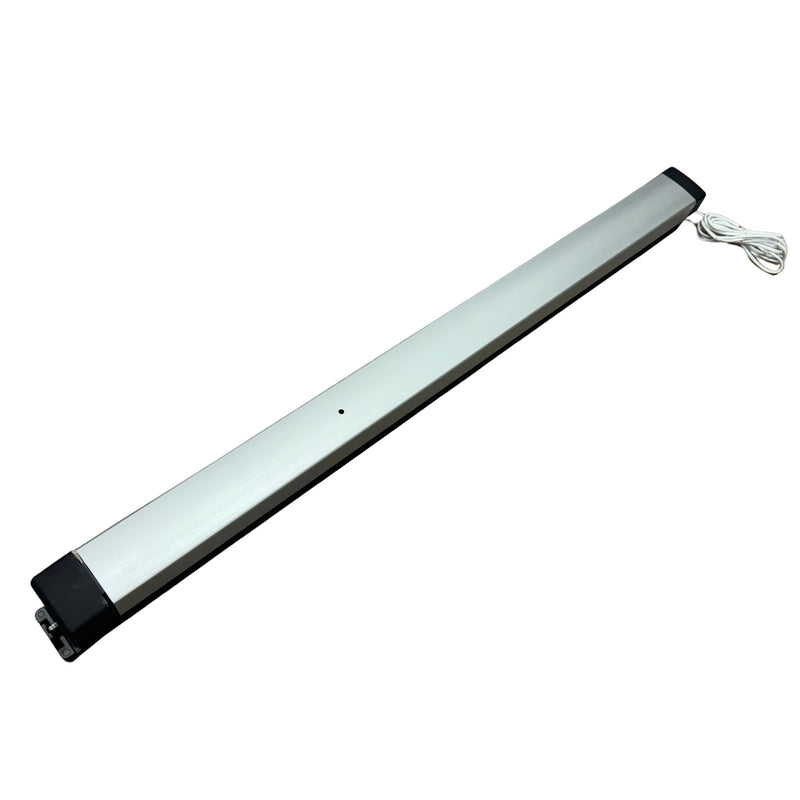

Command Access ARLP‑8801‑EU‑12V‑48‑AL – Electrified Adams Rite Panic Bar, 48″, Aluminum, Fail Secure, 12V
Product Description
Overview
The Command Access ARLP‑8801‑EU‑12V‑48‑AL is a 48″ electrified panic bar, originally built on the Adams Rite 8800 series rim exit device and expertly modified by Command Access Technologies. Featuring fail secure operation and a clean Aluminum finish, this 12V unit delivers reliable, access control-ready performance for commercial and storefront doors.
Specifications
-
Product Type: Electrified Panic Bar
-
Base Device: Adams Rite 8800 Series Rim Exit
-
Electrified By: Command Access Technologies
-
Model: ARLP‑8801‑EU
-
Voltage: 12 VDC
-
Length: 48″
-
Finish: Aluminum (AL)
-
Function: Electrified latch retraction (EU – electronically unlocked)
-
Operation: Fail Secure – remains locked when power is lost
-
Design: Low-profile body projects less than 3″ from door face
-
Power Draw: Low-amperage solenoid supports extended wire runs
-
Wiring: Includes 6′ quick-connect power cable
-
Dogging: Retains original mechanical dogging feature
-
Warranty: Backed by Command Access 3-year no-hassle warranty
Features & Benefits
-
Command Access Enhanced: Electrified from an original Adams Rite 8800 panic bar for seamless access control integration
-
Fail Secure Operation: Ensures door remains locked during power failure for security
-
12V System Compatibility: Ideal for access control systems operating on 12 VDC
-
Aluminum Finish: Bright anodized finish suits modern commercial aesthetics
-
Reliable Performance: Continuous-duty solenoid designed for heavy usage
-
Efficient Wiring: Low power draw enables centralized power and long-distance installation
-
Narrow Stile Fit: Perfect for aluminum storefront doors
-
Easy Retrofit: Installs quickly with minimal door prep
Additional Information
-
ANSI/BHMA Grade 1 durability
-
Compatible with electronic access control triggers and power supplies
-
Retains factory dogging mechanism
-
Professional installation and wiring support available from Command Access
