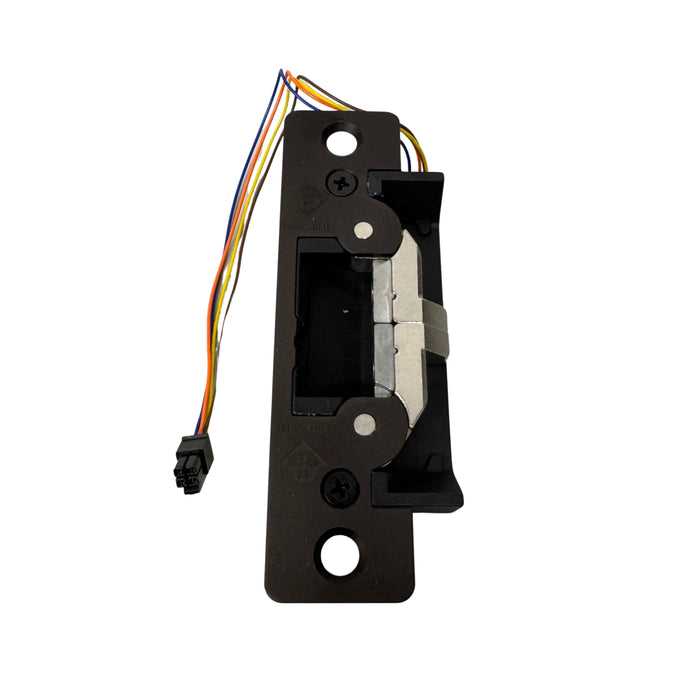

Adams Rite 7400 613 – UltraLine® 7400 Series Electric Strike Fail-Safe/Fail-Secure Dark Bronze Anodized Aluminum

Product Description

The Adams Rite 7400 613 UltraLine® Electric Strike offers dependable remote-controlled access for commercial door systems. Engineered to handle high preload pressures and adaptable for a range of lock types, it is field-selectable for fail-safe or fail-secure operation, providing flexibility for modern security demands.

Specifications

• Series / Model: UltraLine® 7400 Series – Model 7400 613

• Compatibility: Adams Rite 4500, 4700 (discontinued), and 4900 deadlatches, and cylindrical locks with ½″–⅝″ (12.7–15.9 mm) latchbolt projection

• Application: For aluminum, hollow metal, or wood doors

• Handing: Non-handed – field-selectable fail-safe or fail-secure

• Voltage: 12, 16, or 24 VAC/DC dual-voltage

• Holding Strength: Over 1,500 lb (680.4 kg)

• Preload Resilience: Handles up to 25 lb (11.3 kg) of door preload

• Faceplate Dimensions: 4-7⁄8″ × 1-1⁄4″ round faceplate with square corners

• Strike Case Dimensions: 1-13⁄32″ × 3-3⁄8″ × 1-1⁄16″ (35.7 × 85.7 × 27 mm)

• Strike Opening: Adjustable ⅝″ × 1-7⁄16″ × ½″ deep (15.9 × 36.5 × 12.7 mm)

• Door Cut Lip: Designed for 1-3⁄4″ thick doors (lip extension kits available; not compatible with 7401 or 7431)

• Finish: Dark bronze anodized aluminum

• Certifications: UL 1034 Burglary-Resistant Listed, UL 294, ULC-S319, ANSI/BHMA A156.18 & A156.31 Grade 1

Features and Benefits

• Dual-voltage operation with 12, 16, or 24 VAC/DC support

• Field-selectable for fail-safe or fail-secure configuration

• Over 1,500 lb of holding force for enhanced security

• Tolerates up to 25 lb of preload from misalignment or pressure

• Non-handed design allows flexible installation

• Durable dark bronze anodized aluminum finish for commercial applications

• Complies with major UL and ANSI/BHMA standards for access control systems

Additional Information

The Adams Rite 7400 613 is ideal for new construction or retrofit security upgrades in commercial and institutional settings. Its compact, high-performance design is trusted across industries for long-term access control.
